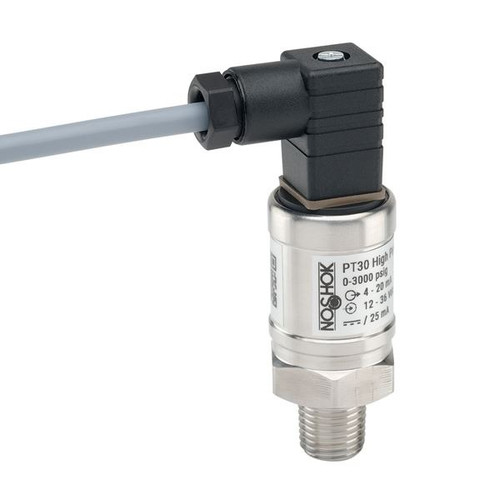

NOSHOK PT30 Series High Performance Fixed Range Pressure Transmitter PT30-150PSIG-1-1-2-17, 0 to 150psig, 4 mA to 20 mA, 2-wire, 1/4 NPT male, DIN form C with 3 ft cable
Brand : NOSHOK
Starting At:
$309.99
- Size Dropdown:
- True
PT30 Series - High Performance Fixed Range Pressure Transmitter
- Gauge, compound, absolute and vacuum ranges from 2 psig to 15,000 psig
- Premium accuracy
- Compact size
- Current and voltage outputs available
- 316 Stainless Steel wetted parts
- RoHS compliant
- CE compliant to suppress RFI, EMI and ESD
- cULus pending
Specifications
Product Series
PT30 High Performance Fixed Range Pressure Transmitter
Pressure Range
0 to 150 psi gauge
Accuracy
±0.25% of span, non-linearity best fit straight line per IEC 61298-2 at reference conditions
Output Signal
4 mA to 20 mA, 2-wire
Process Connection
1/4 NPT male
Electrical Connection
DIN form C with 3 ft cable
Power Requirement
12 Vdc to 36 Vdc
Environmental Rating
IP65
Materials of Construction (Wetted Parts)
316 Stainless Steel with 304 Stainless Steel housing
Media Temperature Range
-22 to 221 ºF / -30 to 105 ºC
Applications
- Hydraulics & pneumatics
- Automotive
- Pumps & compressors
- Refrigeration controls
- Mobile equipment
- General Industrial
Related Items
- 2072-MFS, 1/4" National Pipe Thread (NPT), Male x Female, Stainless Steel, Hard Seat, 0.187" Orifice Block and Bleed 2-Valve
- 25-02S-S-02S, 1/4" National Pipe Thread (NPT) Instrument Connection, 316 Stainless Steel, 1/4" National Pipe Thread (NPT) Process Connection, 316 Stainless Steel Type 25 Seal w/ 316 Stainless Steel Diaphragm
- 402-MFS, 1/4" National Pipe Thread (NPT), Male x Female, 316 Stainless Steel, Hard Seat, 0.187" Orifice Needle Valve
- 5025, 1/4" National Pipe Thread (NPT), 15,000 psi Pressure Rating Piston Type 316 Stainless Steel Snubber
