Save 9%

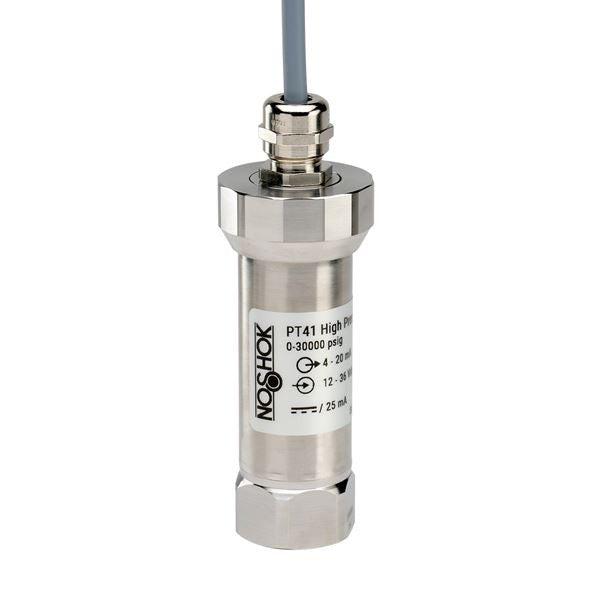

NOSHOK PT41 Series High Pressure Fixed Range Pressure Transmitter PT41-23000PSIG-2-1-6-36, 0 to 23000 psig, 4 mA to 20 mA, ±0.25% Span, Integral Cable 3 Ft
SKU:
PT41-23000PSIG-2-1-6-36
Made in the United States
$3,390.99
Price on request
Was: $3,766.96
You Save $375.97
Available
Available Models
PT41-23000PSIG-1-1-6-8
PT41-23000PSIG-1-1-6-18
PT41-23000PSIG-1-1-6-14
PT41-23000PSIG-1-1-6-25
PT41-23000PSIG-1-1-6-36
PT41-23000PSIG-1-1-6-3
PT41-23000PSIG-1-1-6-16
PT41-23000PSIG-2-1-6-8
PT41-23000PSIG-2-1-6-18
PT41-23000PSIG-2-1-6-14
PT41-23000PSIG-2-1-6-25
PT41-23000PSIG-2-1-6-36
PT41-23000PSIG-2-1-6-3
PT41-23000PSIG-2-1-6-16
Size9/16"
Pressure Range0 to 23000 psi gauge
Process Connection9/16-18 UNF 2B high pressure
Media Temperature Range32 to 175°F / 0 to 80°C
Ships direct from the manufacturer — call 888-825-8800 for current lead time
Buying for a facility?
Custom quote, volume pricing, or Net 30 terms available.
Request a Formal Quote or call 888-825-8800
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Product Series | PT41 High Pressure Fixed Range Pressure Transmitter |
|---|---|
| Accuracy | ±0.25% of span, non-linearity best fit straight line per IEC 61298-2 at reference conditions |
| Output Signal | 4 mA to 20 mA, 2-Wire |
| Power Requirement | 10 Vdc to 30 Vdc |
| Brand | NOSHOK |
| Manufacturer Part # | PT41-23000PSIG-2-1-6-36 |
| Size | 9/16" |
| Country of Origin | Made in the United States |
Materials & Construction
| Materials of Construction | 316 Stainless Steel with 316 Stainless Steel housing |
|---|
Performance
| Pressure Range | 0 to 23000 psi gauge |
|---|---|
| Environmental Rating | IP68 |
| Media Temperature Range | 32 to 175°F / 0 to 80°C |
Connections
| Process Connection | 9/16-18 UNF 2B high pressure |
|---|---|
| Electrical Connection | integral cable 3 ft |
