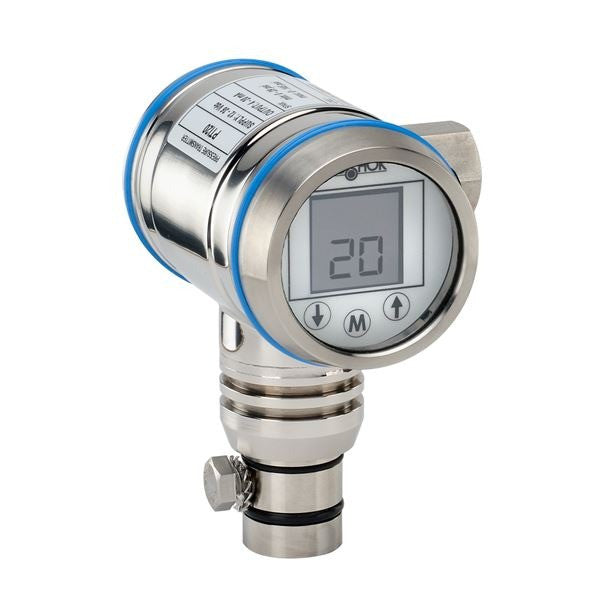

NOSHOK PTI20 Series Intelligent Industrial Pressure Transmitter, Min. Span 14.5 psi, Max. Span 58 psi, 1" Flush PMC
SKU:
NSK-PTI20-14-5/58-psi-1-in-Flush-PMC
Made in the United States
Starting at
$1,105.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Pressure RangeMin. span 14.5 psi, max. span 58 psi (lowest vacuum pressure -15 psig)
Process Connection1" flush PMC
Media Temperature Range-4 to 176 ºF / -20 to 80 ºC
Buying for a facility?
Custom quote, volume pricing, or Net 30 terms available.
Request a Formal Quote or call 888-825-8800
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Product Series | PTI20 Intelligent Pressure Transmitter |
|---|---|
| Accuracy | ±0.2% of adjusted span with 4:1 turn down |
| Output Signal | 4 mA to 20 mA, 2-Wire |
| Power Requirement | 12 Vdc to 36 Vdc |
| Stability | <0.1%/year |
| Adjustment | By 3 push buttons on display or optional HART® protocol |
| Response Time | <100 ms |
| Service Life | >10 yr |
| Measuring Element | 316 Stainless Steel (Hastelloy C or Tantalum optional) |
| Brand | NOSHOK |
| Manufacturer Part # | NSK-PTI20-14-5/58-psi-1-in-Flush-PMC |
| Country of Origin | Made in the United States |
Materials & Construction
| Materials of Construction (Wetted Parts) | 316 Stainless Steel with 304 Stainless Steel housing |
|---|
Performance
| Pressure Range | Min. span 14.5 psi, max. span 58 psi (lowest vacuum pressure -15 psig) |
|---|---|
| Environmental Rating | IP66 |
| Media Temperature Range | -4 to 176 ºF / -20 to 80 ºC |
| Ambient Temperature Range | -4 to 158 ºF / -20 to 70 ºC |
| Flange Temperature Range | -4 to 212 ºF / -20 to 100 ºC |
Connections
| Process Connection | 1" flush PMC |
|---|---|
| Electrical Connection | M12 x 1 4 pin |
| Connection Material | 316 Stainless Steel |
Dimensions & Weight
| Approximate Weight | 3.3 lb |
|---|
Overview
PTI20 Series - Intelligent Industrial Pressure Transmitters
- Adjustable pressure ranges vacuum to 1,160 psig
- All ranges are user adjustable from vacuum to full scale with standard on board display
- 4 mA to 20 mA HART® optional pressure transmitter
- Accuracy ±0.2% of adjusted span
- 4:1 turn down
- All Stainless Steel construction with 316 Stainless Steel wetted parts
- Built to suppress RFI, EMI and ESD
