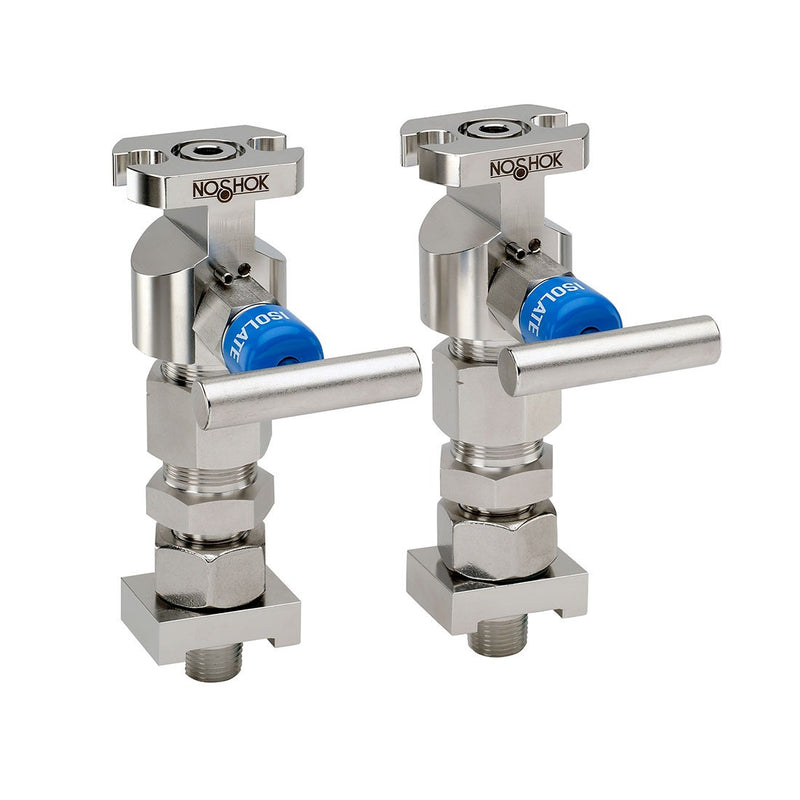

NOSHOK SV Series Stabilized Connectors With Integral Block Valve, SVC2, Steel Stabilized Connector Valve Pair, Adapter Flange
SKU:
SVC2
Made in the United States
$297.99
Price on request
Was: $330.97
You Save $32.98
Available
Connection Size1/2 in
Pressure Rating at 200 Degree Fahrenheit (ºF) Temperature6,000 psi
Connection TypeNational Pipe Thread (NPT), Flange
Typically ships in 3–5 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Type | Stabilized Connector |
|---|---|
| Orifice Size | 0.375 in |
| Series | SV |
| Connector Type | Stabilized connector pair with integral valve, flange adapter (For Round installation, orifice flange) |
| Warranty | 3 yr |
| Brand | NOSHOK |
| Manufacturer Part # | SVC2 |
| Size | 1/2" |
| Country of Origin | Made in the United States |
Materials & Construction
| Material | Steel |
|---|---|
| Stem Seal and Type | All 316 Stainless Steel stems with FKM o-ring and PTFE back-up ring below the threads |
| Bolt Material | Carbon Steel |
Performance
| Flow Coefficient Cv | 3.0 |
|---|---|
| Pressure Rating at 200 Degree Fahrenheit (ºF) Temperature | 6,000 psi |
Connections
| Connection Type | National Pipe Thread (NPT), Flange |
|---|---|
| Connection Size | 1/2 in |
Dimensions & Weight
| Weight | 10.6 lb |
|---|
Overview
SV Series - Stabilized Connectors With Integral Block Valve
- Block valve and stabilized tap are joined by a coupling nut which allows easy installation and non-rotation of the valve
- Slotted bolt holes allow for 2-1/8" and 2-1/4" bolt spacings
- Designed to reinforce the entire installation by shifting radial-stress load away from the NPT connections
- 0.375" bore for unrestricted passage of process gas
- Patent pending
