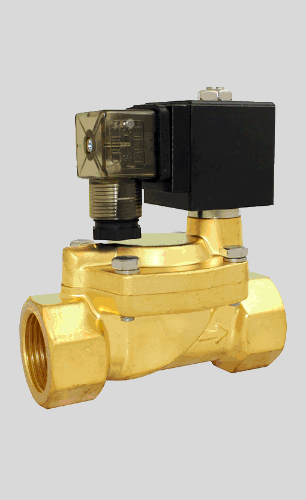

STC 2D250- 1" NPT, Anti-Hammering, Slow Closing Pilot Solenoid Valve, Brass Body, 2-Way, Normally Closed

Name: STC 2D250- 1" NPT, Anti-Hammering, Slow Closing Pilot Solenoid Valve, Brass Body, 2-Way, Normally Closed
Brand: STC Valve
SKU: 2D250-1

SKU: 2D250-1

$162.99 Was: $190.11 You Save $27.12

Available to Order

Available Sizes

1/2" 3/4" 1" 1-1/4" 1-1/2" 2"

Size1"

Op PressureAC Coil: 4 PSI to 175 PSI

Body Material2D Series Valve Body: Brass

Elec. ConnectionD: DIN 43650, Form A (2W200C)

Typically ships in 1 business days from the manufacturer

Need it fast? Call 888-825-8800 — we may be able to expedite your order.

Estimated ship date: calculating...

Download Specification Sheet (PDF)

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

30-Day Returns · see policy

Expert Support: 888-825-8800

Technical Specifications

General

Orifice	25mm
CV	11.1
Valve Type	2 Way
Action	Anti-Hammering
De Energized State	Normally Closed (NC)
Op Temp	Media with NBR Seal: 14°F to 176°F (-10°C to 80°C)
Coil Power	AC Coil: 28VA
Voltage Options	12VDC
Voltage Tolerance	± 10% of Specified Voltage
Ingress Protection	IP65
Insulation Class	H Class
Coil Duty	100% ED (Continuous Duty)
Installation	No Orientation Requirement
Service	Liquid, Water, Oil, Air
Brand	STC Valve
Manufacturer Part #	2D250-1
Size	1"

Materials & Construction

Body Material	2D Series Valve Body: Brass

Performance

Op Pressure	AC Coil: 4 PSI to 175 PSI

Connections

Elec. Connection	D: DIN 43650, Form A (2W200C)
