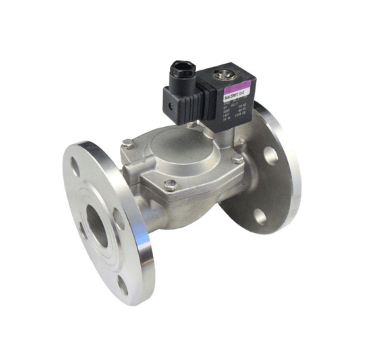

STC 2DSO500-1500 Pilot, Solenoid Valve 2-Way, Normally Open, Anti-Hammering, Slow Closing

SKU: STC 2DSO500-1500
Starting at $849.99

Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.

Available Sizes
Please select a size to order.

Select a size above to add to cart.

Op PressureAC Coil: 6 PSI to 120 PSI
Body MaterialValve Body: 304 Stainless Steel
Elec. ConnectionDIN 43650, Form A
Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
30-Day Returns · see policy
Expert Support: 888-825-8800

Technical Specifications

General

Orifice50-150mm
CV30 to 291.7
Valve Type2 Way
ActionPilot Diaphragm
De Energized StateNormally Open (NO)
Op TempMedia with NBR Seal: 23°F to 176°F (-5°C to 80°C)
Coil PowerAC Coil: 28VA
Voltage Options12VDC
Voltage Tolerance±10% of Specified Voltage
Ingress ProtectionIP65
Insulation ClassH Class
Coil Duty100% ED (Continuous Duty)
InstallationNo Orientation Requirement
ServiceLiquid, Water, Air, Inert Gas
BrandSTC Valve
Manufacturer Part #STC 2DSO500-1500

Materials & Construction

Body MaterialValve Body: 304 Stainless Steel

Performance

Op PressureAC Coil: 6 PSI to 120 PSI

Connections

Elec. ConnectionDIN 43650, Form A
