Save 14%

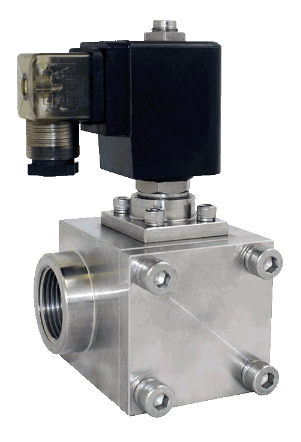

STC 2E200- 3/4" NPT, High Pressure Solenoid Valve, Stainless Steel Body, 2-Way, Normally Closed, Pilot Piston
SKU:
2E200-3/4-1-D
$830.99
Price on request
Was: $969.49
You Save $138.50
Available to Order
Voltage: 12VDC
Size3/4"
Op PressureStandard Option: 87 PSI to 1450 PSI at 77°F
Body MaterialValve Body: 304 Stainless Steel
Elec. ConnectionD: DIN 43650, Form A (2E150C)
Typically ships in 1 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Orifice | 20mm |
|---|---|
| CV | 16 |
| Valve Type | 2 Way |
| Action | Pilot Piston |
| De Energized State | Normally Closed (NC) |
| Op Temp | -40°F to 356°F (-40°C to 180°C) With non-freezing medium |
| Coil Power | AC Coil: 33VA |
| Voltage Options | 12VDC |
| Voltage Tolerance | ±10% of Specified Voltage |
| Ingress Protection | IP65 |
| Insulation Class | H Class |
| Coil Duty | 100% ED (Continuous Duty) |
| Installation | No Orientation Requirement |
| Service | Liquid, Water, Oil, Air |
| Brand | STC Valve |
| Manufacturer Part # | 2E200-3/4-1-D |
| Size | 3/4" |
Materials & Construction
| Body Material | Valve Body: 304 Stainless Steel |
|---|
Performance
| Op Pressure | Standard Option: 87 PSI to 1450 PSI at 77°F |
|---|
Connections
| Elec. Connection | D: DIN 43650, Form A (2E150C) |
|---|
