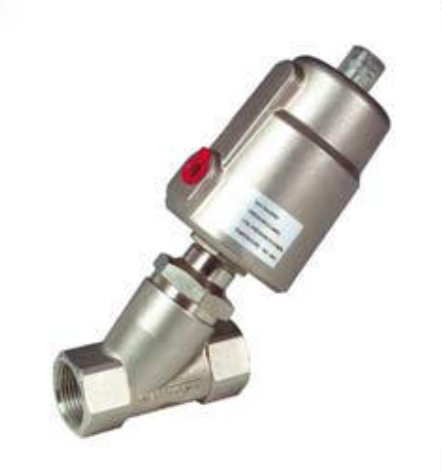

STC 2KS 3/4" Single Acting- Air Actuated Angle Seat Valves, 2-Way, Normally Open (NO)
SKU:
2KS-3/4-O
$280.99
Price on request
Was: $327.41
You Save $46.42
Available to Order
Size3/4"
Inlet Below Valve Seat Pressure at 180°CInlet Below Valve Seat Pressure at 180°C
Body Material316 Stainless Steel / CF8M
Typically ships in 1 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
Made-to-order — final sale, see return policy
Expert Support: 888-825-8800
Technical Specifications
General
| Orifice | 18mm |
|---|---|
| CV | 9.5 |
| Valve Type | 2 Way, Bi-Directional |
| Action | Direct Piston Actuation |
| De Energized State | Normally Open (NO) |
| Op Temp | Media: -5°F to 365°F (-20°C to 180°C) |
| Service | Liquid, Water, Air, Gas, Steam |
| Installation | Any Orientation |
| Brand | STC Valve |
| Manufacturer Part # | 2KS-3/4-O |
| Size | 3/4" |
Materials & Construction
| Body Material | 316 Stainless Steel / CF8M |
|---|
Performance
| Inlet Below Valve Seat Pressure at 180°C | Inlet Below Valve Seat Pressure at 180°C |
|---|---|
| Controlling Pressure Range | 65 PSI to 120 PSI |
