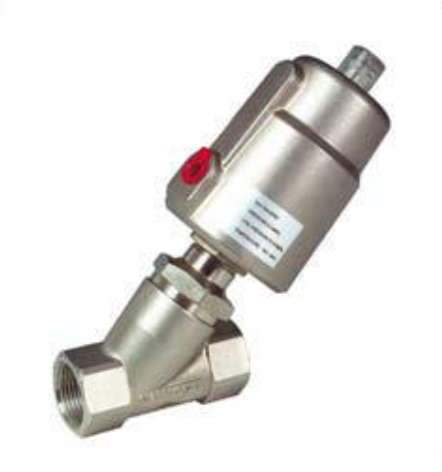

STC 2KS Series Single Acting- Air Actuated Angle Seat Valves, 2-Way, Normally Closed (NC)
SKU:
STC-2KS-NC
Starting at
$221.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Please select a size to order.
Select a size above to add to cart.
Inlet Below Valve Seat Pressure at 180°C0 to 240 PSI
Body Material316 Stainless Steel / CF8M
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
Made-to-order — final sale, see return policy
Expert Support: 888-825-8800
Technical Specifications
General
| Orifice | 13 to 80mm |
|---|---|
| CV | 4.7 to 104 |
| Valve Type | 2 Way, Bi-Directional |
| Action | Direct Piston Actuation |
| De Energized State | Normally Closed (NC) |
| Op Temp | Media: -5°F to 365°F (-20°C to 180°C) |
| Service | Liquid, Water, Air, Gas, Steam |
| Installation | Any Orientation |
| Brand | STC Valve |
| Manufacturer Part # | STC-2KS-NC |
Materials & Construction
| Body Material | 316 Stainless Steel / CF8M |
|---|
Performance
| Inlet Below Valve Seat Pressure at 180°C | 0 to 240 PSI |
|---|---|
| Controlling Pressure Range | 65 PSI to 120 PSI |
