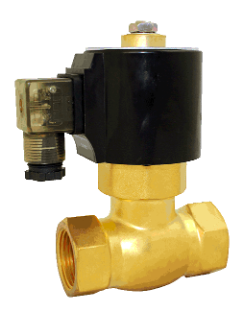

STC 2L170-300- NPT Solenoid Valve, Brass Body, 2-Way, Normally Closed, Pilot Piston, High Temp.
SKU:
STC 2L170-300
Starting at
$187.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
OP Pressure7 PSI to 232 PSI at 25°C
Body MaterialValve Body: Brass
Elec. ConnectionDIN 43650, Form A (2W350C)
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Orifice | 17-30mm |
|---|---|
| CV | 4.8 to 22 |
| Valve Type | 2 Way |
| Action | Pilot Piston, Uni-Directional |
| De Energized State | Normally Closed (NC) |
| Op Temp | Media: 23°F to 356°F (-5°C to 180°C) |
| Coil Power | AC Coil: 28VA |
| Voltage Options | 12VDC |
| Voltage Tolerance | ±10% of Specified Voltage |
| Ingress Protection | IP65 |
| Insulation Class | H Class |
| Coil Duty | 100% ED (Continuous Duty) |
| Installation | Valve Vertical (Standing Up) |
| Service | Liquid, Water, Oil, Air, Gas, Steam |
| Brand | STC Valve |
| Manufacturer Part # | STC 2L170-300 |
Materials & Construction
| Body Material | Valve Body: Brass |
|---|
Performance
| OP Pressure | 7 PSI to 232 PSI at 25°C |
|---|
Connections
| Elec. Connection | DIN 43650, Form A (2W350C) |
|---|
