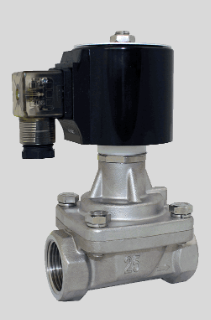

STC 2LS150-500- NPT, Steam Solenoid Valve, 2-Way, Normally Closed, Piston Action

Name: STC 2LS150-500- NPT, Steam Solenoid Valve, 2-Way, Normally Closed, Piston Action
Brand: STC Valve
SKU: STC 2LS150-500

SKU: STC 2LS150-500

Starting at $218.99

Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.

Available Sizes

1/2" 3/4" 1" 1-1/4" 1-1/2" 2"

OP PressureAC Coil: 0 PSI to 145 PSI

Body MaterialValve Body: 304 Stainless Steel

Elec. ConnectionDIN 43650, Form A (2WO250C/2W350C)

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

Expert Support: 888-825-8800

Technical Specifications

Orifice	15-50mm
CV	4.8 to 48
Valve Type	2 Way
Action	Semi Direct Acting Piston
De Energized State	Normally Closed (NC)
Op Temp	Media: 23°F to 356°F (-5°C to 180°C)
Coil Power	Rectangular Coil (2WO250C)
Voltage Options	12VDC
Voltage Tolerance	±10% of Specified Voltage
Ingress Protection	IP65
Insulation Class	H Class
Coil Duty	100% ED (Continuous Duty)
Installation	No Orientation Requirement
Service	Liquid, Water, Oil, Air, Inert Gas, Steam, Vacuum
Brand	STC Valve
Manufacturer Part #	STC 2LS150-500

Body Material	Valve Body: 304 Stainless Steel

OP Pressure	AC Coil: 0 PSI to 145 PSI

Elec. Connection	DIN 43650, Form A (2WO250C/2W350C)
