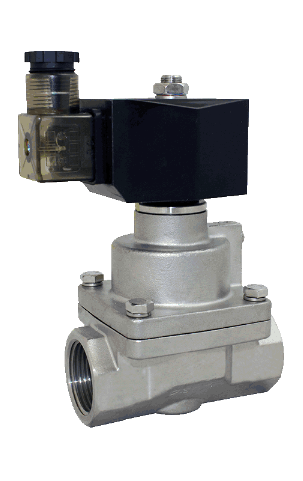

STC 2MS120-500- NPT Solenoid Valve, 304 Stainless Steel Body, 2-Way, Normally Closed, Pilot Piston for High Temp. & Pressure

Name: STC 2MS120-500- NPT Solenoid Valve, 304 Stainless Steel Body, 2-Way, Normally Closed, Pilot Piston for High Temp. & Pressure
Brand: STC Valve
SKU: STC 2MS120-500-NC

SKU: STC 2MS120-500-NC

Starting at $159.99

Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.

Available Sizes

3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"

Select a size above to add to cart.

Standard Operating Pressure6 PSI to 230 PSI

Body Material304 Stainless Steel

Elec. ConnectionD: DIN 43650, Form A (2W200C)

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

30-Day Returns · see policy

Expert Support: 888-825-8800

Technical Specifications

General

Orifice	12-50mm
CV	4.5 to 48
Valve Type	2 Way
Action	Pilot Piston
De Energized State	Normally Closed (NC)
Op Temp	Media: -4°F to 356°F (-20°C to 180°C)
Coil Power	AC Coil: 22-28VA
Voltage Options	12VDC
Voltage Tolerance	±10% of Specified Voltage
Ingress Protection	IP65
Insulation Class	H Class
Coil Duty	100% ED (Continuous Duty)
Installation	No Orientation Requirement
Service	Liquid, Air, Inert Gas, Steam, Vacuum
Brand	STC Valve
Manufacturer Part #	STC 2MS120-500-NC

Materials & Construction

Body Material	304 Stainless Steel

Performance

Medium Pressure Option (M)	AC Coil: 6 PSI to 725 PSI
High Pressure Option	87 PSI to 1450 PSI

Connections

Elec. Connection	D: DIN 43650, Form A (2W200C)

Standards & Certifications

6 PSI to 230 PSI

Download Specification Sheet (PDF)
