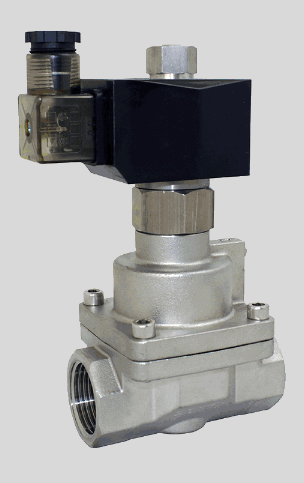

STC 2MSO400- 1-1/2" NPT Solenoid Valve, 304 Stainless Steel Body, 2-Way, Normally Open, Pilot Piston for High Temp. & Pressure

Name: STC 2MSO400- 1-1/2" NPT Solenoid Valve, 304 Stainless Steel Body, 2-Way, Normally Open, Pilot Piston for High Temp. & Pressure
Brand: STC Valve
SKU: 2MSO400-1 1/2-2-D

SKU: 2MSO400-1 1/2-2-D

$498.99 Was: $581.89 You Save $82.90

Available to Order

Available Sizes

3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"

Voltage & Connection: 24VDC, DIN

Size1-1/2"

OP Pressure6 PSI to 230 PSI

Body Material304 Stainless Steel

Elec. ConnectionAC Coil: 6 PSI to 725 PSI

Typically ships in 1 business days from the manufacturer

Need it fast? Call 888-825-8800 — we may be able to expedite your order.

Estimated ship date: calculating...

Download Specification Sheet (PDF)

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

30-Day Returns · see policy

Expert Support: 888-825-8800

Technical Specifications

General

Orifice	40mm
CV	30
Valve Type	2 Way
Action	Pilot Piston
De Energized State	Normally Closed (NC)
Op Temp	Media: -4°F to 356°F (-20°C to 180°C)
Coil Power	D: DIN 43650, Form A (2W200C)
Voltage Options	N: DIN with 1/2" NPT Circuit Conduit
Voltage Tolerance	24VDC
Ingress Protection	24VAC
Insulation Class	110/120VAC (50/60Hz)
Coil Duty	220/240VAC (50/60Hz
Installation	±10% of Specified Voltage
Service	IP65
Brand	STC Valve
Manufacturer Part #	2MSO400-1 1/2-2-D
Size	1-1/2"

Materials & Construction

Body Material	304 Stainless Steel

Performance

OP Pressure	6 PSI to 230 PSI

Connections

Elec. Connection	AC Coil: 6 PSI to 725 PSI
