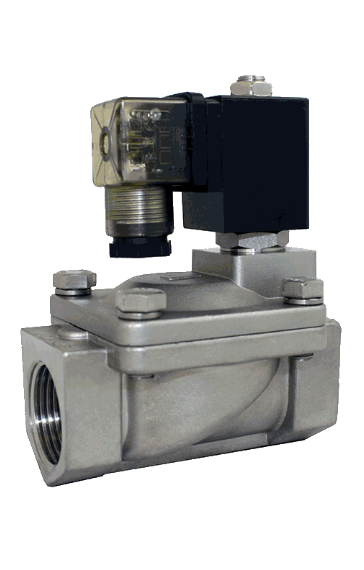

STC 2RS130-500- NPT Solenoid Valve, 316 Stainless Steel Body, 2-Way, Normally Closed, Pilot-Operated Diaphragm

Name: STC 2RS130-500- NPT Solenoid Valve, 316 Stainless Steel Body, 2-Way, Normally Closed, Pilot-Operated Diaphragm
Brand: STC Valve
SKU: STC 2RS130-500

SKU: STC 2RS130-500

Starting at $96.99

Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.

Available Sizes

3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"

Select a size above to add to cart.

Op Pressure NC Model4.5 PSI to 232 PSI

Body MaterialValve Body: 316 Stainless Steel

Elec. ConnectionD: DIN 43650, Form A (2W200C)

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

30-Day Returns · see policy

Expert Support: 888-825-8800

Technical Specifications

General

Orifice	13-50mm
CV	4.5 to 48
Valve Type	2 Way
Action	Pilot Diaphragm
De Energized State	Normally Closed (NC)
Op Temp	Media with NBR Seal: 14°F to 176°F (-10°C to 80°C)
Coil Power	AC Coil: 28VA
Voltage Options	12VDC
Voltage Tolerance	±10% of Specified Voltage
Ingress Protection	IP65
Insulation Class	H Class
Coil Duty	100% ED (Continuous Duty)
Installation	No Orientation Requirement
Service	Liquid, Water, Potable Water, Oil, Air, Gas
Brand	STC Valve
Manufacturer Part #	STC 2RS130-500

Materials & Construction

Body Material	Valve Body: 316 Stainless Steel

Performance

Op Pressure NC Model	4.5 PSI to 232 PSI
Op Pressure NO Model	AC Coil: 4.5 PSI to 185 PSI

Connections

Elec. Connection	D: DIN 43650, Form A (2W200C)

Download Specification Sheet (PDF)
