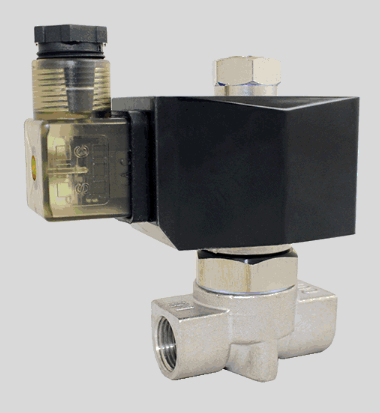

STC 2SO040- 3/8" NPT Solenoid Valve 2-Way, Normally Open
SKU:
2SO040-3/8-1-D
$91.99
Price on request
Was: $107.21
You Save $15.22
Available to Order
Available Sizes
1/4"
3/8"
Voltage & Connection: 12VDC, DIN
Size3/8"
Op PressureVacuum to 60 PSI
Body MaterialValve Body: 304 Stainless Steel
Elec. ConnectionDIN 43650, Form A
Typically ships in 1 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Orifice | 4.0mm |
|---|---|
| CV | 0.6 |
| Valve Type | 2 Way |
| Action | Direct Acting |
| De Energized State | Normally Open (NO) |
| Op Temp | Media with NBR Seal: 14°F to 176°F (-10°C to 80°C) |
| Coil Power | 28-30W |
| Voltage Options | 12VDC |
| Voltage Tolerance | ±10% of Specified Voltage |
| Ingress Protection | IP65 |
| Insulation Class | H Class |
| Coil Duty | 100% ED (Continuous Duty) |
| Installation | No Orientation Requirement |
| Service | Liquid, Water, Oil, Air, Vacuum |
| Brand | STC Valve |
| Manufacturer Part # | 2SO040-3/8-1-D |
| Size | 3/8" |
Materials & Construction
| Body Material | Valve Body: 304 Stainless Steel |
|---|
Performance
| Op Pressure | Vacuum to 60 PSI |
|---|
Connections
| Elec. Connection | DIN 43650, Form A |
|---|
