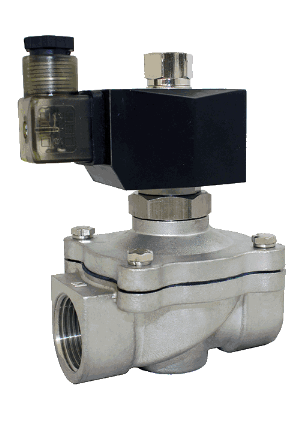

STC 2SO350- 1-1/4" NPT Solenoid Valve, 304 Stainless Steel Body, 2-Way, Normally Open, Direct Lift Diaphragm

Name: STC 2SO350- 1-1/4" NPT Solenoid Valve, 304 Stainless Steel Body, 2-Way, Normally Open, Direct Lift Diaphragm
Brand: STC Valve
SKU: 2SO350-1 1/4

SKU: 2SO350-1 1/4

$408.99 Was: $476.87 You Save $67.88

Available to Order

Available Sizes

3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"

Size1-1/4"

Op PressureStandard Option: Vacuum to 90 PS

Body MaterialValve Body: 304 Stainless Steel

Elec. ConnectionDIN 43650, Form A (2WO250C/2W350C)

Typically ships in 1 business days from the manufacturer

Need it fast? Call 888-825-8800 — we may be able to expedite your order.

Estimated ship date: calculating...

Download Specification Sheet (PDF)

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

30-Day Returns · see policy

Expert Support: 888-825-8800

Technical Specifications

General

Orifice	35mm
CV	24
Valve Type	2 Way
Action	Direct Lift Diaphragm
De Energized State	Normally Open (NO)
Op Temp	Media with NBR Seal: 14°F to 176°F (-10°C to 80°C)
Coil Power	Round Coil (2W350C)
Voltage Options	12VDC
Voltage Tolerance	±10% of Specified Voltage
Ingress Protection	IP65
Insulation Class	H Class
Coil Duty	100% ED (Continuous Duty), 20ms Response Time
Installation	No Orientation Requirement
Service	Liquid, Water, Oil, Air, Gas, Inert Gas, Vacuum
Brand	STC Valve
Manufacturer Part #	2SO350-1 1/4
Size	1-1/4"

Materials & Construction

Body Material	Valve Body: 304 Stainless Steel

Performance

Op Pressure	Standard Option: Vacuum to 90 PS

Connections

Elec. Connection	DIN 43650, Form A (2WO250C/2W350C)
