Save 13%

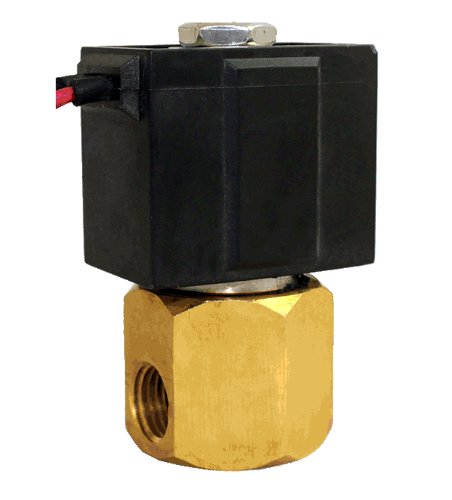

STC 2W025-H- 1/4" NPT Solenoid Valve, Brass Body, 2-Way, Normally Closed
SKU:
2W025-1/4H-1-G
$39.99
Price on request
Was: $46.19
You Save $6.20
Available to Order
Voltage & Connection: 12VDC, Grommet
Size1/4"
OP Pressure22-220VAC: Vacuum to 200 PSI
Body MaterialValve Body: Brass
Elec. ConnectionG: Grommet
Typically ships in 1 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Orifice | 2.5mm |
|---|---|
| CV | 0.23 |
| Valve Type | 2 Way |
| Action | Direct Acting (Poppet) |
| De Energized State | Normally Closed (NC) |
| Op Temp | 14°F to 176°F (-10°C to 80°C) |
| Coil Power | 12-14W |
| Voltage Options | 12VDC |
| Voltage Tolerance | ±10% of Specified Voltage |
| Ingress Protection | IP65 |
| Insulation Class | H Class |
| Coil Duty | 100% ED (Continuous Duty) |
| Installation | No Orientation Requirement |
| Service | Liquid, Water, Oil, Air |
| Brand | STC Valve |
| Manufacturer Part # | 2W025-1/4H-1-G |
| Size | 1/4" |
Materials & Construction
| Body Material | Valve Body: Brass |
|---|
Performance
| OP Pressure | 22-220VAC: Vacuum to 200 PSI |
|---|
Connections
| Elec. Connection | G: Grommet |
|---|
