STC 2W200C Coil Timers and Power Save Devices

Name: STC 2W200C Coil Timers and Power Save Devices
Brand: STC Valve
SKU: STC-2W200C-T-PS

SKU: STC-2W200C-T-PS

Starting at $14.99

Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.

Available Sizes

DIN 43650A (Form A), 88 x 48 x 21 mm DIN 43650A (Form A), 88 x 48 x 21 mm DIN 43650A (Form A) DIN 43650A (Form A), 88 x 48 x 21 mm DIN 43650A (Form A), 88 x 48 x 21 mm DIN 43650A (Form A), 88 x 48 x 21 mm

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

Expert Support: 888-825-8800

Technical Specifications

Brand	STC Valve
Manufacturer Part #	STC-2W200C-T-PS

Applications	For STC 2W200C, 2W350C and 2WO Coils

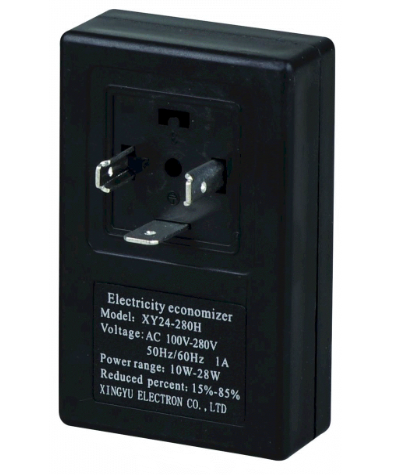

Device Types	On/off timer switch / Digital on/off timer switch / Programmable digital timer / Power save device
Electrical Connection	Termination: DIN 43650A
Voltage	7-36V DC or AC / 12-36V DC or AC / 24-240V DC or AC / 100-280VAC 50/60Hz
Timing Range	On 0.5 to 99 seconds, off 30 seconds to 99 hours depending on model
Energy Save Rate	15 to 85% (power save devices)
Size	88 x 48 x 21 mm
Protection	IP65, EN60529
