Save 14%

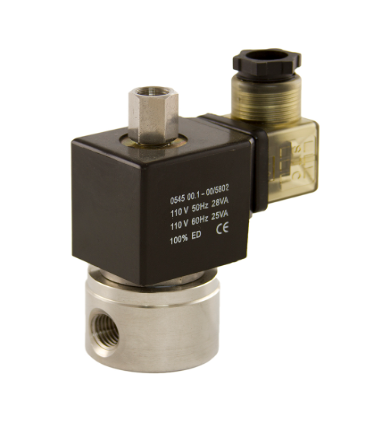

STC 3S020- 1/4" NPT Universal Solenoid Diverter/Selector Valve, Stainless Steel Body, 3-Way, Normally Closed (NC) or Normally Open (NO), Direct Acting
SKU:
3S020-1/4
$52.99
Price on request
Was: $61.77
You Save $8.78
Available to Order
Available Models
3S020
3S035
Voltage & Connection: Viton, No Coil
Size1/4"
Op Pressure0 PSI to 100 PSI
Body MaterialValve Body: 316 Stainless Steel
Elec. ConnectionD: DIN
Typically ships in 1 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Orifice | 2.0mm |
|---|---|
| CV | 0.23 |
| Valve Type | 3 Way Universal |
| Action | Direct Acting |
| De Energized State | Normally Closed (NC) or Normally Open (NO) |
| Op Temp | Media with NBR Seal: 14°F to 176°F (-10°C to 80°C) |
| Coil Power | 13-20W |
| Voltage Options | 12VDC |
| Voltage Tolerance | ±10% of Specified Voltage |
| Ingress Protection | IP65 |
| Insulation Class | H Class |
| Coil Duty | 100% ED ( Continuous Duty) |
| Installation | No Orientation Requirement |
| Service | Liquid, Water, Oil, Air, Inert Gas |
| Brand | STC Valve |
| Manufacturer Part # | 3S020-1/4 |
| Size | 1/4" |
Materials & Construction
| Body Material | Valve Body: 316 Stainless Steel |
|---|
Performance
| Op Pressure | 0 PSI to 100 PSI |
|---|
Connections
| Elec. Connection | D: DIN |
|---|
