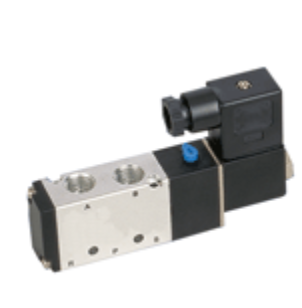

STC 4V110-1/8 Solenoid Valve- Spring Return (single solenoid), 4-Way, 5-Port, 2-Position
SKU:
4V110-1/8
$32.99
Price on request
Was: $37.38
You Save $4.39
Available to Order
Voltage & Connection: No Coil
Port Size (NPT)1/8" NPT
Operating Pressure21 to 115PSI (Proof Pressure: 200PSI - leaks develop)
Electrical ConnectionDIN, Grommet
Operating Temperature14 to 140°F (-10 to 60°C)
Port & MountingBody Ported, 4-Way, 5-Port, 2-Position, Spring Return
Typically ships in 1 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Action & Motion | Air Pilot, Spool Design, Response Time < 20ms |
|---|---|
| Cv | 0.67 |
| SCFM @ 100 PSI | 100 |
| Manual Override | Detentable (depress & rotate) |
| Working Medium | 40 micron filtered air or inert gas |
| Coil Duty Cycle & Protection | 100% ED (Continuous Duty), IP65, Class F |
| Coil Voltage Options | 12VDC |
| Coil Power | 2.5W |
| Coil Locking Nut | M7 x 0.5 Threads |
| Wetted Surface | Anodized Aluminum, NBR (Buna N), Stainless Steel |
| Brand | STC Valve |
| Manufacturer Part # | 4V110-1/8 |
| Size | 1/8" |
Performance
| Operating Pressure | 21 to 115PSI (Proof Pressure: 200PSI - leaks develop) |
|---|---|
| Operating Temperature | 14 to 140°F (-10 to 60°C) |
Connections
| Port & Mounting | Body Ported, 4-Way, 5-Port, 2-Position, Spring Return |
|---|---|
| Port Size (NPT) | 1/8" NPT |
| Electrical Connection | DIN, Grommet |
