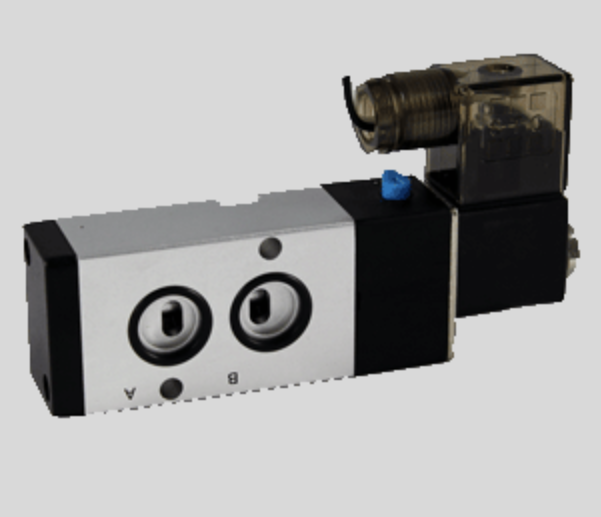

STC 4V210-310 Series Solenoid Valve- Spring Return NAMUR Mount, 4-Way, 5-Port, 2-Position
Brand : STC Valve
MSRP: $39.85
Starting At:
$34.99
(You save
$4.86
)
- Minimum Purchase:
- 1 unit
- Size Dropdown:
- True
STC 4V210E-310 Series Technical Specifications
Port & Mounting
Body Ported, 4-Way, 5-Port, 2-Position, Spring Return, NAMUR Mount
Action & Motion
Air Pilot, Spool Design, Response Time < 20ms
Operating Pressure
21 to 115PSI (Proof Pressure: 200PSI - leaks develop)
Port Size (NPT)
-
Operating Temperature
14 to 140°F (-10 to 60°C)
Cv
-
SCFM @ 100 PSI
-
Manual Override
Detentable (depress & rotate)
Electrical Connection
DIN, Grommet
Working Medium
40 micron filtered air or inert gas
Coil Duty Cycle & Protection
100% ED (Continuous Duty), IP65, Class F
Coil Voltage Options
12VDC
24VDC
24VAC
110/120 VAC (50/60Hz),
220/240 VAC (50/60Hz)
Coil Power
-
Coil Locking Nut
-
Wetted Surface
Anodized Aluminum, NBR (Buna N), Stainless Steel
