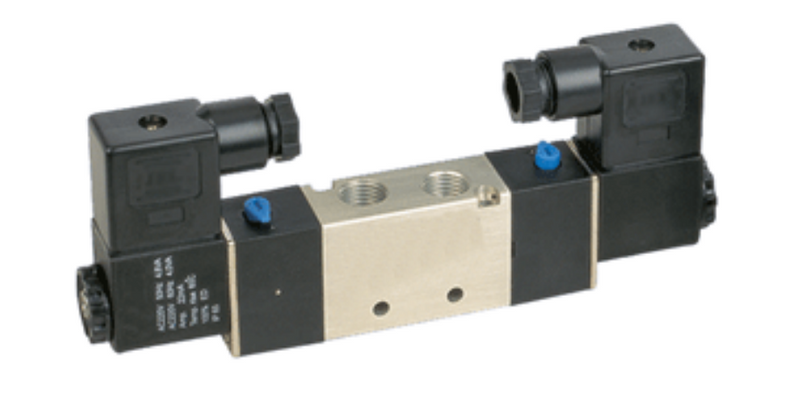

Description Other Details STC 4V230E-1/4 Technical Specifications Port & MountingBody Ported, 4-Way, 5-Port, 3-Position, Center Position: Exhaust Action & MotionAir Pilot, Spool Design, Response Time < 20ms Operating Pressure21 to 115PSI (Proof Pressure: 200PSI - leaks develop) Port Size (NPT)1/4" (1/8" Exhaust Ports) Operating Temperature14 to 140°F (-10 to 60°C) Cv0.89 SCFM @ 100 PSI53 Manual OverrideDetentable (depress & rotate) Electrical ConnectionDIN, Grommet Working Medium40 micron filtered air or inert gas Coil Duty Cycle & Protection100% ED (Continuous Duty), IP65, Class F Coil Voltage Options12VDC 24VDC 24VAC 110/120 VAC (50/60Hz), 220/240 VAC (50/60Hz) Coil Power3 / 4.8WCoil Locking NutM8 x 0.75 ThreadsWetted SurfaceAnodized Aluminum, NBR (Buna N), Stainless Steel Discover more about the STC 4V230E-1/4 Solenoid ValveInstallation ManualSpecification SheetSolenoid Valves Owner's Manual Size: 1/4" Size Dropdown: True
Description Other Details STC 4V230E-1/4 Technical Specifications Port & MountingBody Ported, 4-Way, 5-Port, 3-Position, Center Position: Exhaust Action & MotionAir Pilot, Spool Design, Response Time < 20ms Operating Pressure21 to 115PSI (Proof Pressure: 200PSI - leaks develop) Port Size (NPT)1/4" (1/8" Exhaust Ports) Operating Temperature14 to 140°F (-10 to 60°C) Cv0.89 SCFM @ 100 PSI53 Manual OverrideDetentable (depress & rotate) Electrical ConnectionDIN, Grommet Working Medium40 micron filtered air or inert gas Coil Duty Cycle & Protection100% ED (Continuous Duty), IP65, Class F Coil Voltage Options12VDC 24VDC 24VAC 110/120 VAC (50/60Hz), 220/240 VAC (50/60Hz) Coil Power3 / 4.8WCoil Locking NutM8 x 0.75 ThreadsWetted SurfaceAnodized Aluminum, NBR (Buna N), Stainless Steel Discover more about the STC 4V230E-1/4 Solenoid ValveInstallation ManualSpecification SheetSolenoid Valves Owner's Manual Size: 1/4" Size Dropdown: True
