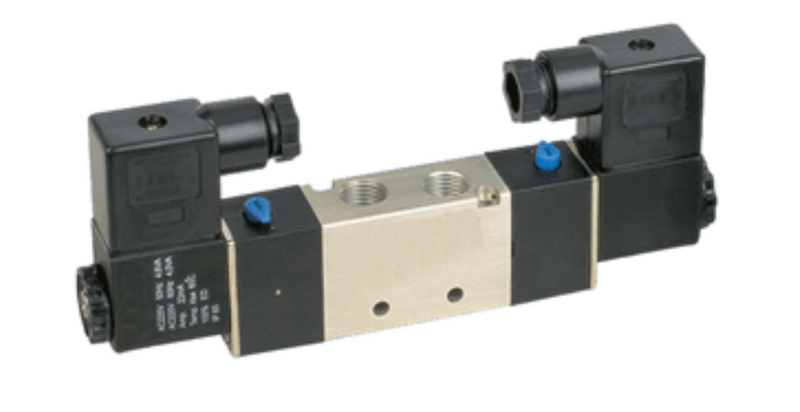

STC 4V130E-1/8 Solenoid Valve- Air Return (double solenoid), Exhausted Center, 4-Way, 5-Port, 3-Position
Brand : STC Valve
MSRP: $101.79
Starting At:
$87.99
(You save
$13.80
)
- Minimum Purchase:
- 1 unit
- Size:
- 1/8"
- Size Dropdown:
- True
STC 4V130E-1/8 Technical Specifications
Port & Mounting
Body Ported, 4-Way, 5-Port, 3-Position, Center Position: Exhaust
Action & Motion
Air Pilot, Spool Design, Response Time < 20ms
Operating Pressure
21 to 115PSI (Proof Pressure: 200PSI - leaks develop)
Port Size (NPT)
1/8"
Operating Temperature
14 to 140°F (-10 to 60°C)
Cv
0.67
SCFM @ 100 PSI
25
Manual Override
Detentable (depress & rotate)
Electrical Connection
DIN, Grommet
Working Medium
40 micron filtered air or inert gas
Coil Duty Cycle & Protection
100% ED (Continuous Duty), IP65, Class F
Coil Voltage Options
12VDC
24VDC
24VAC
110/120 VAC (50/60Hz),
220/240 VAC (50/60Hz)
Coil Power
2.5W
Coil Locking Nut
M7 x 0.5 Threads
Wetted Surface
Anodized Aluminum, NBR (Buna N), Stainless Steel
