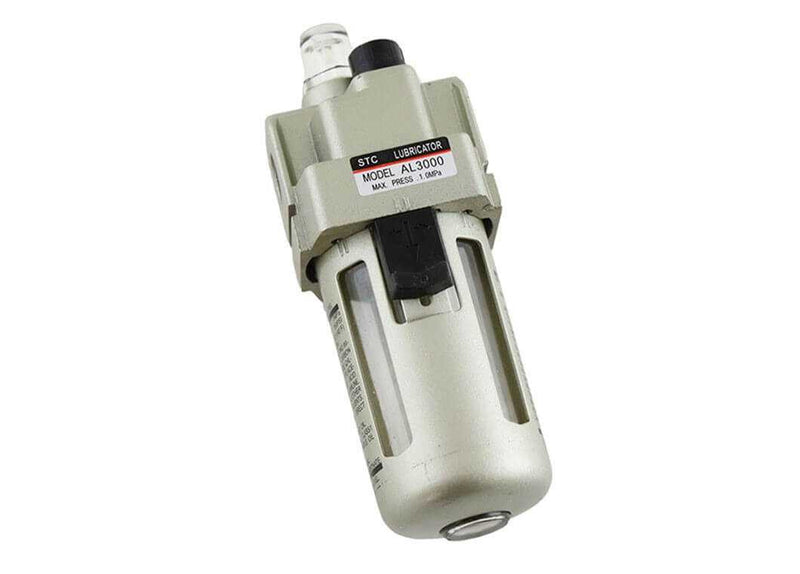

STC AL3000-02 - 1/4" NPT Air Lubricator (60 SCFM)

Name: STC AL3000-02 - 1/4" NPT Air Lubricator (60 SCFM)
Brand: STC Valve
SKU: AL3000-02

SKU: AL3000-02

$26.99 Was: $31.03 You Save $4.04

Available to Order

Available Models

1/4" NPT, 60 SCFM 1/4" NPT, Metal Bowl, 60 SCFM 3/8" NPT, 60 SCFM 3/8" NPT, Metal Bowl, 60 SCFM 3/8" NPT, 180 SCFM 3/8" NPT, Metal Bowl, 180 SCFM 1/2" NPT, 180 SCFM 1/2" NPT, Metal Bowl, 180 SCFM 3/4" NPT, 220 SCFM 3/4" NPT, Metal Bowl, 180 SCFM 1" NPT, 245 SCFM 1" NPT, Metal Bowl, 245 SCFM

Port Size1/4" NPT

Body MaterialAluminum

Temperature Limits40 - 140°F

Typically ships in 1 business days from the manufacturer

Need it fast? Call 888-825-8800 — we may be able to expedite your order.

Estimated ship date: calculating...

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

Expert Support: 888-825-8800

Technical Specifications

Output Ranges	7-125 psi
Max Supply	150 PSI (9.9 kgf/cm^2)
Filter	5 Micron Filter (Option); 25 Micron (Standard Sintered Brass Filter)
Seals	NBR
Brand	STC Valve
Manufacturer Part #	AL3000-02
Size	1/4"

Body Material	Aluminum
Bowl Material	Polycarbonate

Flow Capacity	60 SCFM (1700 LPM)
Temperature Limits	40 - 140°F

Port Size	1/4" NPT

Weight	0.66 lbs

See Specification Sheet
