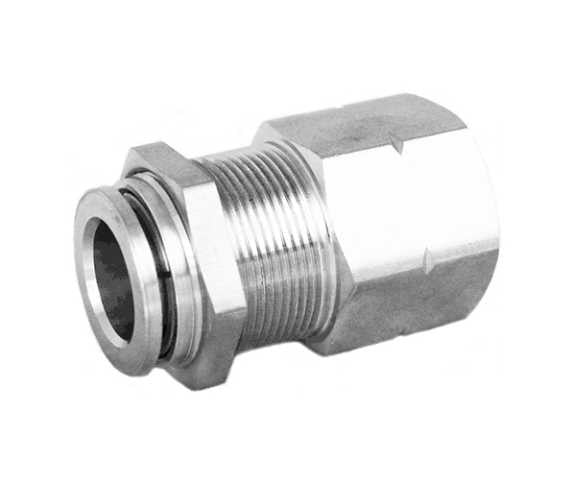

STC BCS 8mm R1/4 W Bulk Head Connector- Stainless Steel (Gripper Style) Fittings R1/4

Name: STC BCS 8mm R1/4 W Bulk Head Connector- Stainless Steel (Gripper Style) Fittings R1/4
Brand: STC Valve
SKU: BCS 8 R1/4 W

SKU: BCS 8 R1/4 W

$33.99 Was: $39.29 You Save $5.30

Available to Order

Available Sizes

1/8" 1/8" 1/8" 5/32" 5/32" 5/32" 4mm 4mm 4mm 6mm 6mm 6mm 6mm 1/4" 1/4" 1/4" 1/4" 5/16" 5/16" 5/16" 5/16" 8mm 8mm 8mm 3/8" 3/8" 3/8" 3/8" 10mm 10mm 12mm 12mm 12mm 1/2" 1/2" 1/2"

Pipe Size, Type1/4" BSPT

Operating Pressure Range0 - 250PSI (0 - 1650kPa)

Body MaterialT316 Stainless Steel

ConnectionTube to Female Threaded Pipe

Operating Temperature5 - 230°F (-15 to 110°C)

Typically ships in 1 business days from the manufacturer

Need it fast? Call 888-825-8800 — we may be able to expedite your order.

Estimated ship date: calculating...

Download Specification Sheet (PDF)

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

30-Day Returns · see policy

Expert Support: 888-825-8800

Technical Specifications

General

Shape	Bulkhead Connector
For Tube OD	8mm
Bulkhead Nut	S19
Vacuum	0 - 30" Hg (0 - 760 mm Hg)
Service	Air, Liquid
RoHS	Compliant
Brand	STC Valve
Manufacturer Part #	BCS 8 R1/4 W
Size	8mm

Materials & Construction

Body Material	T316 Stainless Steel
Release Button Material	300 Series Stainless Steel
Grip Ring or Collet Material	300 Series Stainless Steel
O-Ring Material	FKM
Recommended Tubing Material	Polyurethane, Nylon, Polyethylene, Polypropylene, and Hard metal tubing (metal tubing must be pre-grooved)

Performance

Operating Pressure Range	0 - 250PSI (0 - 1650kPa)
Operating Temperature	5 - 230°F (-15 to 110°C)
Sterilization Temperature	Up to 280°F (138°C)

Connections

Connection	Tube to Female Threaded Pipe
Pipe Size, Type	1/4" BSPT
Bulkhead Thread	M17X1
