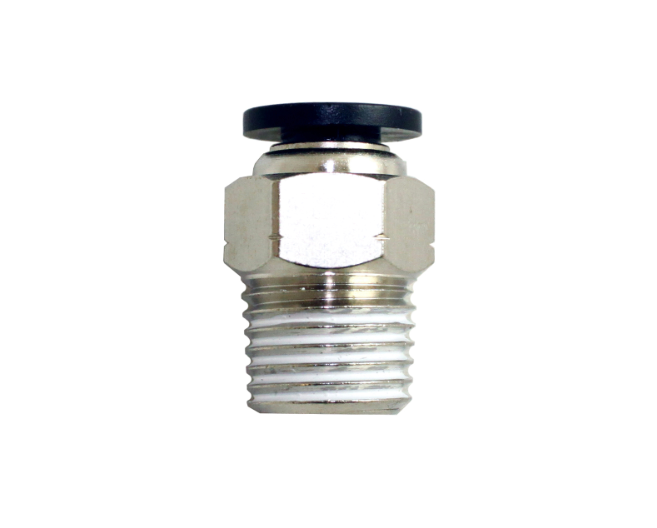

STC MC 5/16" N1/8 K Male Connector (with Internal Hex)- Push-In Air Fitting, 1/8" NPT, 0-180 psi

Name: STC MC 5/16" N1/8 K Male Connector (with Internal Hex)- Push-In Air Fitting, 1/8" NPT, 0-180 psi
Brand: STC Valve
SKU: MC 5/16 N1/8 K

SKU: MC 5/16 N1/8 K

$1.99

Available to Order

Available Sizes

1/8" 1/8" 1/8" 5/32" 5/32" 5/32" 4mm 4mm 4mm 4mm 3/16" 3/16" 3/16" 3/16" 6mm 6mm 6mm 6mm 6mm 6mm 1/4" 1/4" 1/4" 1/4" 1/4" 5/16" 5/16" 5/16" 8mm 8mm 8mm 8mm 3/8" 3/8" 3/8" 3/8" 10mm 10mm 10mm 10mm 12mm 12mm 12mm 12mm 1/2" 1/2" 1/2"

Size5/16"

Operating Pressure Range0 - 180 PSI (0 - 1200 kpa)

Operating Temperature32 - 140°F (0 - 60°C)

Typically ships in 1 business days from the manufacturer

Need it fast? Call 888-825-8800 — we may be able to expedite your order.

Estimated ship date: calculating...

Download Installation & Maintenance Manual (PDF)

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

30-Day Returns · see policy

Expert Support: 888-825-8800

Technical Specifications

General

Metal Body	Brass, Nickel Plated
Plastic Body	PBT (Polybutylene Terephthalate)
Grip Ring or Collet	300 Series Stainless Steel
O-Ring	NBR (Buna-N)
Service	For Air Only
Brand	STC Valve
Manufacturer Part #	MC 5/16 N1/8 K
Size	5/16"

Materials & Construction

Recommended Tubing Material	Polyurethane, Nylon, Polyethylene, Polypropylene

Performance

Operating Pressure Range	0 - 180 PSI (0 - 1200 kpa)
Operating Temperature	32 - 140°F (0 - 60°C)

Connections

Thread Sealant	Teflon
