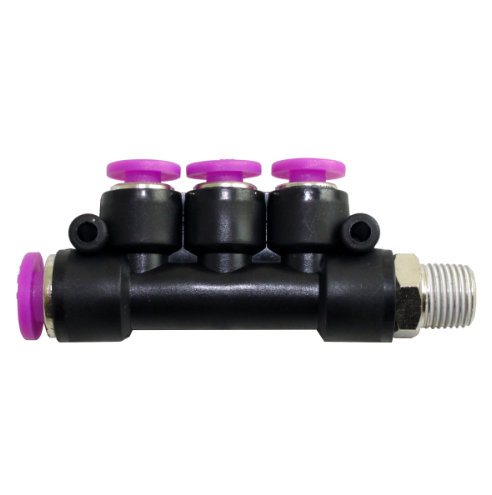

STC MM 8-6mm-R1/4 Male Manifold- Push-In Air Fitting, 0-180 psi
SKU:
MM 8-6-R1/4
$8.99
Price on request
Available to Order
Available Models
6mm – 6-4mm
1/4-5/32"-N1/8 Male
5/16-5/32"-N1/4 Male
5/16-1/4"-N1/4 Male
8mm – 8-4mm
8mm – 8-6mm-R1/4 Male
10mm – 10-8mm-R3/8 Male
Size8mm
Operating Pressure Range0 - 180 PSI (0 - 1200 kpa)
Operating Temperature32 - 140°F (0 - 60°C)
Typically ships in 1 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Metal Body | Brass, Nickel Plated |
|---|---|
| Plastic Body | PBT (Polybutylene Terephthalate) |
| Grip Ring or Collet | 300 Series Stainless Steel |
| O-Ring | NBR (Buna-N) |
| Service | For Air Only |
| Brand | STC Valve |
| Manufacturer Part # | MM 8-6-R1/4 |
| Size | 8mm |
Materials & Construction
| Recommended Tubing Material | Polyurethane, Nylon, Polyethylene, Polypropylene |
|---|
Performance
| Operating Pressure Range | 0 - 180 PSI (0 - 1200 kpa) |
|---|---|
| Operating Temperature | 32 - 140°F (0 - 60°C) |
Connections
| Thread Sealant | Teflon |
|---|
