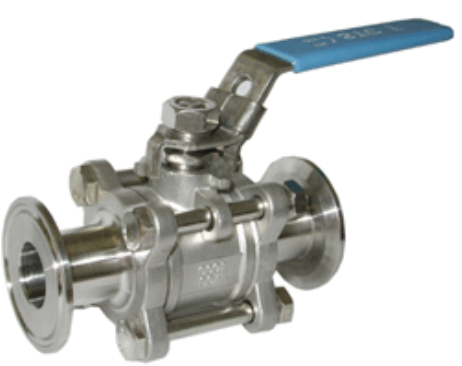

STC V3C Series Sanitary Stainless Steel Ball Valve- Full Port, Clamp End, Padlocking Device and Actuator Mounting Bracket

Name: STC V3C Series Sanitary Stainless Steel Ball Valve- Full Port, Clamp End, Padlocking Device and Actuator Mounting Bracket
Brand: STC Valve
SKU: STC-V3C-Series

SKU: STC-V3C-Series

Starting at $118.99

Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.

Available Sizes

1" 1-1/2" 2" 2-1/2" 3" 4"

Select a size above to add to cart.

Maximum Operating Pressure1000PSI @ 100°F WOG

End ConnectionsClamp End

Operating Temperature Range-60 to 450°F

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

Made-to-order — final sale, see return policy

Expert Support: 888-825-8800

Technical Specifications

General

Valve Type	Sanitary Stainless Steel Ball Valve
Mounting Options	Padlocking device and actuator mounting bracket
Test & Inspection	API1598, JB/T9092
Brand	STC Valve
Manufacturer Part #	STC-V3C-Series

Performance

Maximum Operating Pressure	1000PSI @ 100°F WOG
Operating Temperature Range	-60 to 450°F

Connections

End Connections	Clamp End

Standards & Certifications

B16.34GB/T12237
