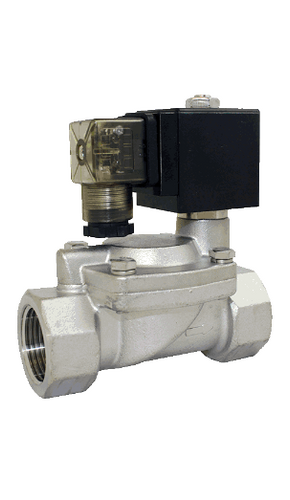

STC 2DS150-500- NPT, Anti-Hammering, Slow Closing Pilot Solenoid Valve, 304 Stainless Steel Body, 2-Way, Normally Closed

Name: STC 2DS150-500- NPT, Anti-Hammering, Slow Closing Pilot Solenoid Valve, 304 Stainless Steel Body, 2-Way, Normally Closed
Brand: STC Valve
SKU: STC 2D150-500-SS

SKU: STC 2D150-500-SS

Starting at $118.99

Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.

Available Sizes

1/2" 3/4" 1" 1-1/4" 1-1/2" 2"

Op PressureAC Coil: 4 PSI to 175 PSI

Body MaterialStandard 2DS Series Valve Body: 304 Stainless Steel

Elec. ConnectionD: DIN 43650, Form A (2W200C)

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

30-Day Returns · see policy

Expert Support: 888-825-8800

Technical Specifications

General

Orifice	15-50mm
CV	3.7 to 35
Valve Type	2 Way
Action	Anti-Hammering
De Energized State	Normally Closed (NC)
Op Temp	Media with NBR Seal: 14°F to 176°F (-10°C to 80°C)
Coil Power	AC Coil: 28VA
Voltage Options	12VDC
Voltage Tolerance	±10% of Specified Voltage
Ingress Protection	IP65
Insulation Class	H Class
Coil Duty	100% ED (Continuous Duty)
Installation	No Orientation Requirement
Service	Liquid, Water, Oil, Air
Brand	STC Valve
Manufacturer Part #	STC 2D150-500-SS

Materials & Construction

Body Material	Standard 2DS Series Valve Body: 304 Stainless Steel

Performance

Op Pressure	AC Coil: 4 PSI to 175 PSI

Connections

Elec. Connection	D: DIN 43650, Form A (2W200C)
