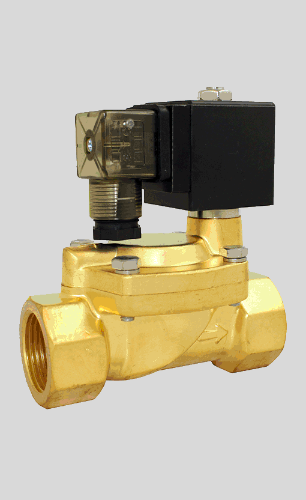

STC 2D250- 1" Brass, Pilot Solenoid Valve 2-Way, Normally Closed, Anti-Hammering, Slow Closing,

Brand : STC Valve

MSRP: $154.50
Starting At: $132.99
(You save $21.51 )
Minimum Purchase:
1 unit
Size:
1"
Size Dropdown:
True
STC 2D250- 1" Brass, Pilot Solenoid Valve 2-Way, Normally Closed, Anti-Hammering, Slow Closing,

Price

Price

Price

Price

View Details

STC 2D250- 1" Brass, Pilot Solenoid Valve Technical Specs

Orifice
25mm
CV
11.1
Valve Type
2 Way
Action
Anti-Hammering

Slow Closing

Pilot Diaphragm
De Energized State
Normally Closed (NC)
Body Material
2D Series Valve Body: Brass

Seal: NBR (Buna N), or Viton (FKM)

Armature Assembly: Stainless Steel

Upgrade Option: Viton (FKM), EPDM
Op Temp
Media with NBR Seal: 14°F to 176°F (-10°C to 80°C)

Media with Viton Seal: 14°F to 266°F (-10°C to 130°C)

Ambient: 23°F to 110°F (-5°C to 43°C)
Op Pressure
AC Coil: 4 PSI to 175 PSI

DC Coil: 4 PSI to 145 PSI
Elec. Connection
D: DIN 43650, Form A (2W200C)

ATEX: ATEX Explosion Proof Coil (2W200C-ATEX)
Coil Power
AC Coil: 28VA

DC Coil: 12-20W
Voltage Options
12VDC

24VDC

24VAC

110/120VAC (50/60Hz)

220/240VAC (50/60Hz
Voltage Tolerance
±10% of Specified Voltage
Ingress Protection
IP65
Insulation Class
H Class
Coil Duty
100% ED (Continuous Duty)
Installation
No Orientation Requirement
Service
Liquid, Water, Oil, Air

Size:
1"
Size Dropdown:
True
