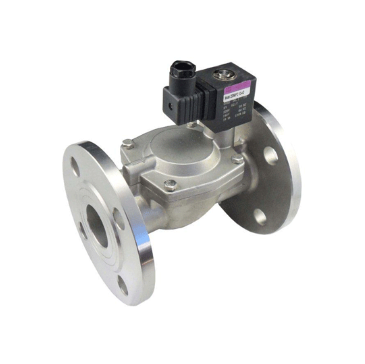

STC 2DSO1000F- 4" Pilot, Solenoid Valve 2-Way, Normally Open, Anti-Hammering, Slow Closing

Brand : STC Valve

MSRP: $2,931.17
Starting At: $2,512.99
(You save $418.18 )
Minimum Purchase:
1 unit
Size:
4"
Size Dropdown:
True
STC 2DSO1000F- 4" Pilot, Solenoid Valve 2-Way, Normally Open, Anti-Hammering, Slow Closing

Price

Price

Price

Price

View Details

STC 2DSO1000F- 4" Pilot, Solenoid Valve Technical Specs

Orifice
100mm
CV
128.4
Valve Type
2 Way
Action
Pilot Diaphragm

Uni-Directional
De Energized State
Normally Open (NO)
Body Material
Valve Body: 304 Stainless Steel

Seal: NBR (Buna N), Viton (FKM)

Upgrade Option: Viton (FKM)
Op Temp
Media with NBR Seal: 23°F to 176°F (-5°C to 80°C)

Media with Viton Seal: 23°F to 248°F (-5°C to 120°C)

Ambient: 23°F to 113°F (-5°C to 45°C)
Op Pressure
AC Coil: 6 PSI to 120 PSI

DC Coil: 6 PSI to 87 PSI
Elec. Connection
DIN 43650, Form A
Coil Power
AC Coil: 28VA

DC Coil: 13-20W
Voltage Options
12VDC

24VDC

24VAC

110/120VAC (50/60Hz)

220/240VAC (50/60Hz
Voltage Tolerance
±10% of Specified Voltage
Ingress Protection
IP65
Insulation Class
H Class
Coil Duty
100% ED (Continuous Duty)
Installation
No Orientation Requirement

Optimum Position: Flow Horizontal and Solenoid Vertical
Service
Liquid, Water, Air, Inert Gas

Size:
4"
Size Dropdown:
True
