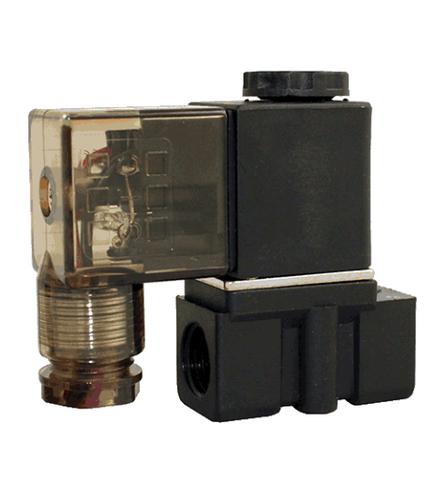

STC 2P025-S- 1/8" Solenoid Valve 2-Way, Normally Closed, Direct Acting
Brand : STC Valve
MSRP: $27.77
Starting At:
$23.99
(You save
$3.78
)
- Minimum Purchase:
- 1 unit
STC 2P025-S- 1/8" Solenoid Valve Technical Specs
Orifice
2.5mm
CV
0.23
Valve Type
2-Way, 2-Position, Body Ported, Spring Return
Action
Direct Acting (Poppet)
Fast Response Time: <20msec
22 SCFM at 100PSI
De Energized State
Normally Closed (NC)
Body Material
Valve Body: Engineered Nylon Plastic (PA66)
Armature Assembly: Stainless Steel
Upgrade Options: Viton (FKM) or PTFE (Teflon)
Op Temp
14°F to 122°F (-10°C to 50°C)
Op Pressure
Vacuum to 115 PSI
Elec. Connection
D: DIN 43650A
G: Grommet
Coil Power
3W to 8W
(Pressure Dependent)
Voltage Options
12VDC
24VDC
24VAC (50/60Hz)
110/120VAC (50/60Hz)
220/240VAC (50/60Hz)
Voltage Tolerance
±10% of Specified Voltage
Ingress Protection
IP65
Insulation Class
H Class
Coil Duty
100% ED, Continuous Duty
Installation
No Orientation Requirement
Optimum Position: Flow Horizontal and Solenoid Vertical
Service
Liquid, Water, Air, Inert Gas
