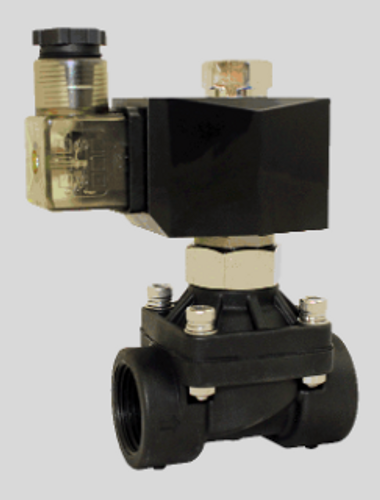

STC 2PO160-250- NPT Solenoid Valve, Nylon Plastic Body, 2-Way, Normally Open, Direct Lift Diaphragm
SKU:
STC 2PO160-250
Starting at
$52.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
OP Pressure0 PSI to 90 PSI
Body MaterialValve Body: Plastic Nylon (PA66)
Elec. ConnectionDIN 43650, Form A
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Orifice | 16-25mm |
|---|---|
| CV | 4.8 to 12 |
| Valve Type | 2 Way |
| Action | Direct Lift Diaphragm |
| De Energized State | Normally Open (NO) |
| Op Temp | Media: 23°F to 122°F (-5°C to 50°C) |
| Coil Power | AC Coil: 28VA |
| Voltage Options | 12VDC |
| Voltage Tolerance | ±10% of Specified Voltage |
| Ingress Protection | IP65 |
| Insulation Class | H Class |
| Coil Duty | 100% ED (Continuous Duty) |
| Installation | No Orientation Requirement |
| Service | Liquid, Water, Oil, Air, Inert Gas, Steam Vacuum |
| Brand | STC Valve |
| Manufacturer Part # | STC 2PO160-250 |
Materials & Construction
| Body Material | Valve Body: Plastic Nylon (PA66) |
|---|
Performance
| OP Pressure | 0 PSI to 90 PSI |
|---|
Connections
| Elec. Connection | DIN 43650, Form A |
|---|
