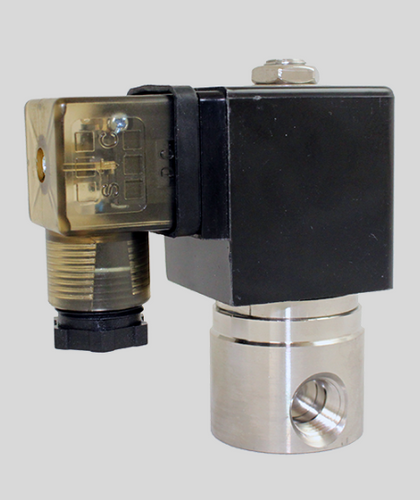

STC 2S035- 1/4" NPT Solenoid Valve, Stainless Steel Body, 2-Way, Normally Closed
Brand : STC Valve
MSRP: $56.36
Starting At:
$48.99
(You save
$7.37
)
- SKU:
- 2S035-1/4
- Minimum Purchase:
- 1 unit
STC 2S035- 1/4" Stainless Steel, Solenoid Valve Technical Specs
Orifice
3.5mm
CV
0.5
Valve Type
2 Way
Action
Direct Acting (Poppet)
Fast Response Time: <20msec
De Energized State
Normally Closed (NC)
Body Material
Valve Body: Stainless Steel
Seal: NBR (Buna N), or Viton (FKM)
Armature Assembly: Stainless Steel
Op Temp
Media with NBR Seal: 14°F to 176°F (-10°C to 80°C)
Media with Viton Seal: 5°F to 248°F (-15°C to 120°C)
Op Pressure
0 PSI to 170 PSI
Elec. Connection
D: DIN 43650, Form A
ATEX: Explosion Proof Coil (2W200C-ATEX)
Coil Power
13-20W
Voltage Options
12VDC
24VDC
24VAC
110/120VAC (50/60Hz)
220/240VAC (50/60Hz
Voltage Tolerance
±10% of Specified Voltage
Ingress Protection
IP65
Insulation Class
H Class
Coil Duty
100% ED (Continuous Duty)
Installation
No Orientation Requirement
Optimum Position: Flow Horizontal and Solenoid Vertical
Service
Liquid, Water, Oil, Air, Steam (with Viton)
