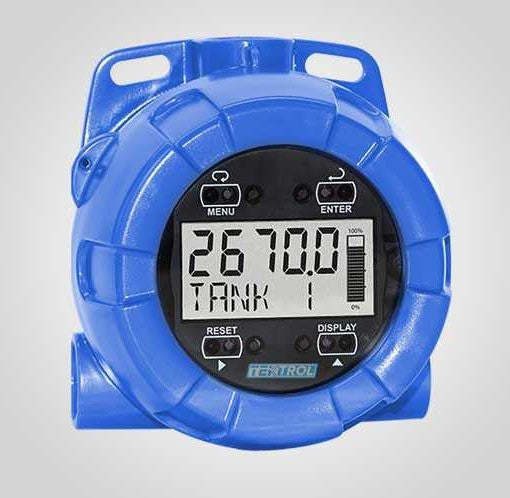

Tek-Trol Tek-LCD 7800A Series, NEMA 4X Loop-Powered Process and Level Indicator
SKU:
TKTRL-7800A
Made in the United States
Starting at
$1,046.99
Out of Stock
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
ConnectionsScrew terminals accept 12 to 22 AWG wire
Buying for a facility?
Custom quote, volume pricing, or Net 30 terms available.
Request a Formal Quote or call 888-825-8800
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Item | NEMA 4X Loop-Powered Process And Level Indicator |
|---|---|
| Display | 3½ digit LCD, 1" (0.08 ft); -1,999 to 1,999 |
| Display Update Rate | 2.5 Updates/Second |
| Display Orientation | Display may be mounted at 90° increments up to 270° from default orientation |
| Externally Powered Backlight | Voltage Range: 9-36 VDC |
| Over Range | Display reads 1 on the left most digit |
| Recalibration | Recommended at least every 12 months. |
| Programming Method | Four front mounted rotary control dials accessed when the cover is removed. |
| Normal Mode Rejection | 60 dB rejection ratio |
| Relative Humidity | 0 to 90% non-condensing |
| Enclosure | NEMA 4X, IP65 |
| Brand | Tek-Trol |
| Manufacturer Part # | TKTRL-7800A |
| Country of Origin | Made in the United States |
Performance
| Operating & Storage Temp. Range | 40°C to 75°C (-40°F to 158°F) |
|---|
Connections
| Connections | Screw terminals accept 12 to 22 AWG wire |
|---|
