Tek Trol, Tek-Sub 4800B Series Clean Liquid Submersible Level Transmitter
Brand : Tek-Trol
Starting At:
$481.99
- SKU:
- TKTRL-Tek-Sub 4800B
- Size Dropdown:
- True
Country of Origin: Made in South Korea

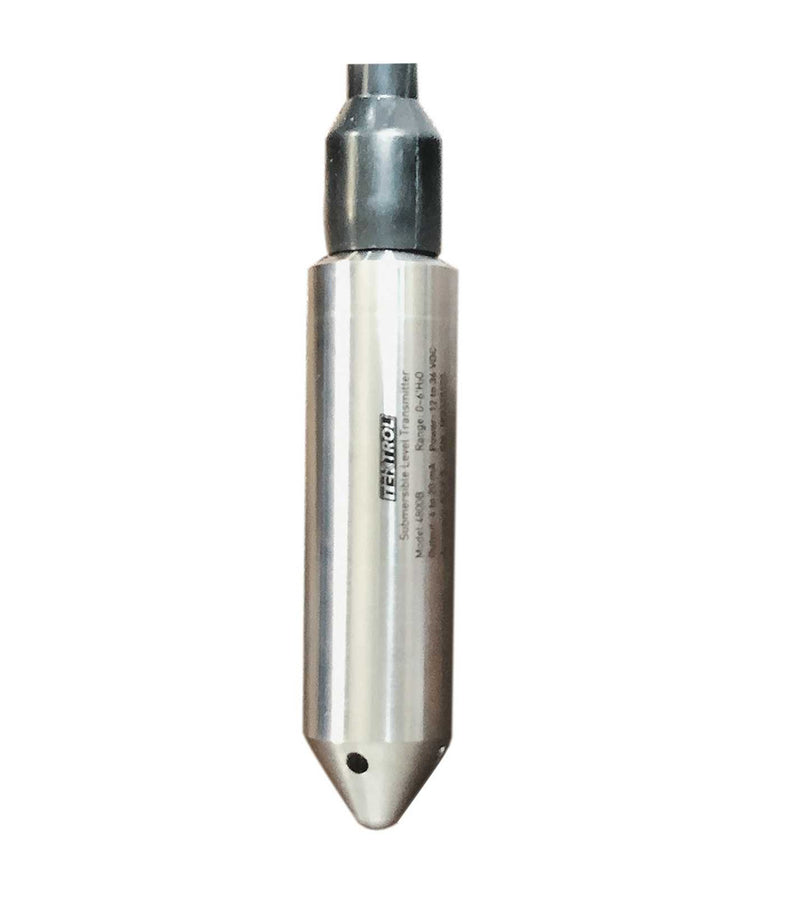

Tek Trol, Tek-Sub 4800B Series Clean Liquid Submersible Level Transmitter
Features
- Standard submersible model
- Piezoresistive pressure sensor in Stainless Steel housing
- Excellent performance in challenging environment
- Temperature Compensated
- Vented to atmosphere for pressure reference
- Measuring pressure ranges from 5 psig to 20 psig
- Accuracy ±0.5% F.S.
Technical Specifications
Item
Clean Liquid Submersible Transmitter
Pressure Range
5 to 20 psig
Housing
304 SS
Cable
40 and 60 Feet Poly Cable
Cable Material
PTFE or Polyurethane
Seal Ring
Viton
Oil Filling
Sillicone Oil
Pressure Type
Gauge (vented)
