Tek-Trol Tek-Sub 4800D-15-42-05-P20 Waste Water Submersible Level Transmitter, -15 psig

Brand :

Starting At: $622.86
Size:
15"
Size Dropdown:
True

Country of Origin: Made in South Korea

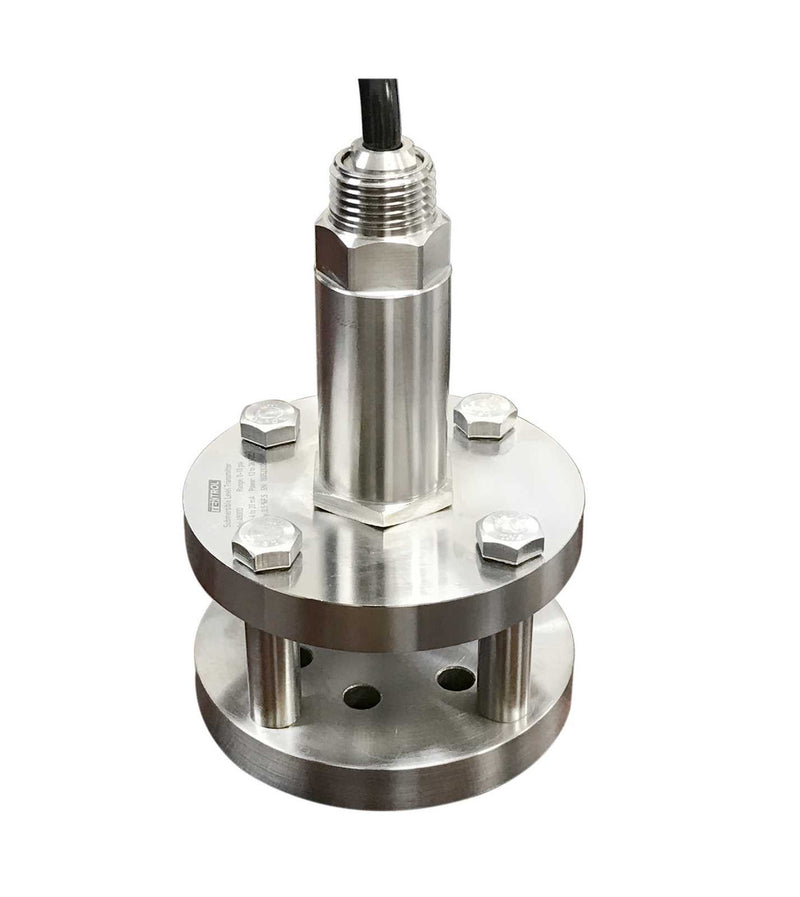

Tek-Sub 4800D-15-42-05-P20 -Waste Water Submersible Level Transmitter

Features

  • Non-clogging sensor cage
  • Completely sealed stainless steel housing
  • No need for external adjustment and calibration
  • Temperature Compensated
  • No moving parts, low maintenance
  • Reliable level measurements in demanding applications
  • Measuring pressure ranges from 5 psig to 20 psig
  • Accuracy: ±0.5% F.S.

Technical Specifications

Item
Waste Water Submersible Level Transmitter
Pressure Range
15 psig
Housing
304 SS
Cable
60 Feet Poly Cable
Cable Material
PTFE or Polyurethane
Diaphragm
316 SS
Oil Filling
Silicone oil
Pressure Type
Gauge (vented)


Discover more about theTek Trol, Tek-Sub 4800D Series Waste Water Submersible Level Transmitter

Documents

Approvals

Size:
15"
Size Dropdown:
True
Country of Origin:
Made in South Korea
