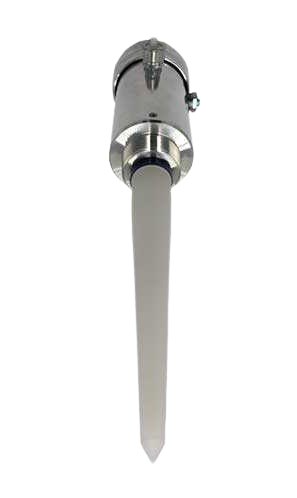

Tek-Trol Tek-Wave 4300A-050R6CH-ALATE, Explosion-Proof Radar Non-Contact Level Transmitter, 50' Range, 2 Wire, 4-20mA, HART
SKU:
4300A-050R6CH-ALATE
Made in the United States
$5,212.99
Price on request
Available to Order
Available Sizes
Size4300A-050R6CH
Pressure Limit72.5 PSI (5 bar) (Without De-coupler)
Temperature Range-40°F to 140°F (-40°C to 60°C)
Typically ships in 14 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Buying for a facility?
Custom quote, volume pricing, or Net 30 terms available.
Request a Formal Quote or call 888-825-8800
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Item | Radar Level Transmitter |
|---|---|
| Operation | Pulse Radar |
| Accuracy | ±0.1% of Max. Range |
| Response Time | 2-3 echos/sec |
| Power Input | 20-35 VDC |
| Power Requirement | 20-35 VDC |
| Conduit Entry | 1/2" NPT x 2 |
| Enclosure | NEMA 6 (IP68) |
| Failsafe | On lost echo after 60 seconds to 180 seconds, user selectable to 22 mA or 3.5 mA |
| Output Signal | 4 to 20 mA with HART |
| Brand | Tek-Trol |
| Manufacturer Part # | 4300A-050R6CH-ALATE |
| Size | 4300A-050R6CH |
| Country of Origin | Made in the United States |
Performance
| Temperature Range | -40°F to 140°F (-40°C to 60°C) |
|---|---|
| Pressure Limit | 72.5 PSI (5 bar) (Without De-coupler) |
Standards & Certifications
FM for Can. &US Explosion Proof Class IDiv.1Groups BCGroups EFG.
