Save 57%

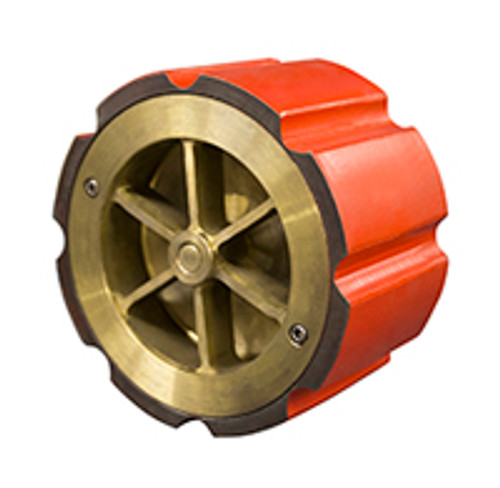

3" Titan FCI CV 90-DI-S-3, Ductile Iron Body, Stainless Steel Disc and Spring, Viton Seat, Silent Check Valve, Wafer Type, Center Guided
SKU:
CV90DSV0300
Made in the United States
$389.99
Price on request
Was: $924.00
You Save $534.01
Available to Order
Size3"
Pressure Rating250 psi @ 100 F (Class 150); 640 psi @ 100 F (Class 300)
Body MaterialDuctile Iron ASTM A536
Seat Temperature RangeViton: -40 F to 400 F
Ships direct from the manufacturer — call 888-825-8800 for current lead time
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Technical Specifications
General
| Item | Silent Check Valve |
|---|---|
| Type | Wafer Type, Center Guided |
| Size | 3" |
| Spring | Series 300 Stainless Steel |
| Bushing | ASTM A351 Gr. CF8M Type 316 Stainless Steel |
| Screws | ASTM A276 Type 304 Stainless Steel |
| ASME Class | ASME Class 150 / 300 (dual rated) |
| Brand | Titan Flow Control |
| Manufacturer Part # | CV90DSV0300 |
| Country of Origin | Made in the United States |
Materials & Construction
| Body Material | Ductile Iron ASTM A536 |
|---|---|
| Disc | ASTM A351 Gr. CF8M Type 316 Stainless Steel |
| Seat | Stainless Steel seat ring with Viton O-ring (soft seat) |
Performance
| Pressure Rating | 250 psi @ 100 F (Class 150); 640 psi @ 100 F (Class 300) |
|---|---|
| Seat Temperature Range | Viton: -40 F to 400 F |
| Spring Maximum Temperature | 450 F |
Standards & Certifications
FM Class 1230MSS SP-125MSS SP-25MSS SP-6ASME B16.42ASME B16.5
