Watson McDaniel CCMV Series Condensate Collection Manifolds With Isolation Valve, Forged Carbon Steel Body, 825 PSIG, 4 Branches, 1/2" NPT
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Custom quote, volume pricing, or Net 30 terms available.
Request a Formal Quote or call 888-825-8800Technical Specifications
General
| Model | CCMS (With Isolation Valve) |
|---|---|
| Size | 1/2" |
| Part Number | N/A |
| Brand | Watson McDaniel |
| Manufacturer Part # | WM-CCMV-412N |
| Country of Origin | Made in the United States |
Materials & Construction
| Body Material | Forged Carbon Steel |
|---|
Performance
| PMO Max. Operating Pressure | 825 PSIG |
|---|---|
| Pressure/Temperature Rating | 825 PSIG @ 800°F |
Connections
| Connection | NPT |
|---|
Overview
Watson McDaniel CCMV Series Condensate Collection Manifolds With Isolation Valve, 825 PSIG (1/2" NPT, 4 Branches)
Features:
- Compact design saves valuable plant space.
- Complete with Material Traceability Reports (MTRs)
- Available in 4, 6, 8, 10 & 12 branch designs.
- Available with pre-assembled steam trap stations.
- Standard designs or custom built manifolds are available.
- All welding in accordance with Section IX of the ASME Boiler and Pressure Vessel Code.
- Reduces installation and maintenance time.
- Options include integral isolation valves, frame stands, steam traps and trap test stations, drain valves, insulation jackets, etc.
Options & Features (See Specification Sheet For Full List):

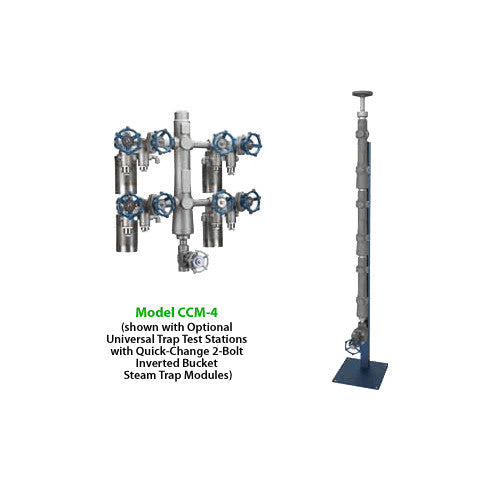

CCM Series Condensate Collection Manifolds
CCM Series are used for condensate collection FROM the tracing system. Commonly used in chemical and petrochemical facilities as well as in other industrial plants that have multiple tracing applications. Manifolding the condensate collection system not only reduces installation and maintenance costs, but also streamlines and organizes piping.
The CCM Series manifold is forged carbon steel with 4, 6, 8, 10 or 12 branch condensate inlet connections. Available with a variety of end connections, including NPT or Socket-weld. The top condensate outlet connection is either NPT, Butt-weld or Flanged. The bottom drain connection is available with optional gate valve. The manifold assembly is offered separately or with optional frame stand. Model CCMS condensate collection manifold is provided with a built-in siphon tube to minimize bi-phase flow, which reduces water-hammer and helps control flash steam. Available with integral isolation valves.
