Watson McDaniel SDM-1212N-17N17N Steam Distribution Manifolds, Forged Carbon Steel Body, 825 PSIG, 12 Branches, NPT
Custom quote, volume pricing, or Net 30 terms available.
Request a Formal Quote or call 888-825-8800Technical Specifications
General
| Model | SDM Series |
|---|---|
| Size | 1/2" |
| Braches Count | 12 |
| Part Number | SDM-1212N-17N17N |
| Brand | Watson McDaniel |
| Manufacturer Part # | SDM-1212N-17N17N |
| Country of Origin | Made in the United States |
Materials & Construction
| Body Material | Forged Carbon Steel |
|---|
Performance
| PMO Max. Operating Pressure | 825 PSIG |
|---|---|
| Pressure/Temperature Rating | 825 PSIG @ 800°F |
Connections
| Connections | NPT |
|---|
Overview
Watson McDaniel SDM-1212N-17N17N Steam Distribution Manifolds, 825 PSIG (1/2" NPT, 12 Branches)
Features:
- Compact design saves valuable plant space
- Complete with Material Traceability Reports (MTRs)
- Available in 4, 8 & 12 branch designs.
- Integral piston-style valves allow for reliable isolation of trap module for testing and replacement
- Standard designs or custom built manifolds are available
- All welding in accordance with Section IX of the ASME Boiler and Pressure Vessel Code
- Provides freeze protection
- Reduces installation and maintenance time
- Options include frame stands, drip steam traps, drain valves, insulation jackets, etc.
Options & Features (See Specification Sheet For Full List):
SDM Series Steam Distribution Manifolds
SDM Series are used for steam distribution TO the tracing system. Commonly used in chemical and petrochemical facilities as well as in other industrial plants that have multiple tracing applications. Manifolding the steam distribution system not only reduces installation and maintenance costs, but also streamlines and organizes piping. The SDM Series has integral isolation valves (option available without isolation valves).

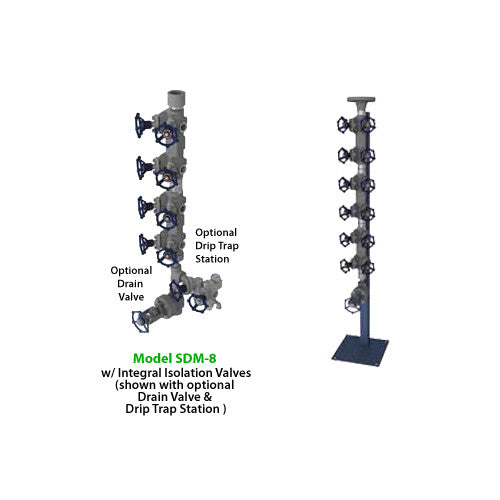

The SDM Series manifold is forged carbon steel with 4, 8 or 12 branch steam outlet connections with integral isolation valves. Available with a variety of end connections, including NPT or Socket-weld. The top steam inlet connection is either Butt-weld or Flanged. The bottom condensate outlet connection is available with optional gate valve. The manifold assembly is offered separately or with optional frame stand.
