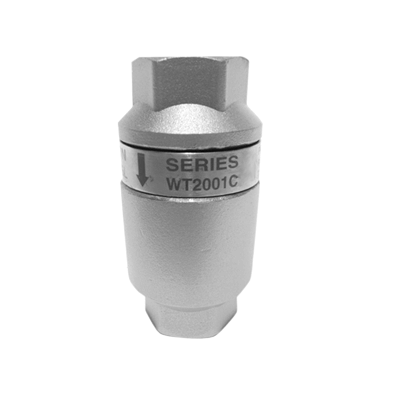

Watson McDaniel WT2000 Series Thermostatic Steam Trap, 5/16" Orifice, 650 Psig PMO, Stainless Steel, Non-Repairable, 1/2", 3/4" NPT
Select a Size to Order This page shows the full valve series. Choose a specific pipe size below to view pricing and add to cart.
Select a size above to add to cart.
Technical Specifications
General
| Model | WT2000 (Non-Repairable) |
|---|---|
| Sizes | 1/2", 3/4" |
| Orifice Size | 5/16" |
| Brand | Watson McDaniel |
| Manufacturer Part # | WM-WT2000-516 |
| Country of Origin | Made in the United States |
Materials & Construction
| Body Material | Stainless Steel |
|---|
Performance
| PMO Max. Operating Pressure | 650 PSIG |
|---|---|
| TMO Max. Operating Temperature | Saturated Steam Temp. |
| PMA Max. Allowable Pressure | 1032 PSIG @ 100°F |
| TMA Max. Allowable Temperature | 750°F @ 800 PSIG |
Connections
| Connections | NPT |
|---|
Overview
Watson McDaniel WT2000 Series Thermostatic Steam Trap (Non-Repairable)
Features:
- Thermostatic traps are excellent at discharging air, which allows steam to enter quickly; extremely important during start-up
- Freeze-proof when trap is installed in a vertical orientation allowing for complete condensate drainage
- Welded stainless steel thermal element resists shock from waterhammer
- Body is produced from stainless steel investment casting
- Hardened stainless steel seat for extended service life
- Integral strainer to protect trap from contamination
- Will operate at steam pressures up to 650 PSIG
Options & Features (See Specification Sheet For Full List):
WT2000 Thermostatic Steam Trap
DRIP, TRACING, PROCESS: The WT2000* thermostatic steam trap is used for drip, tracing, and process applications. Their compact size, all stainless steel construction, excellent air & handling capabilities, and the ability to operate over a wide & pressure range make them a good choice for most applications. They can also be used as an air vent on heat exchangers. Thermostatic traps are far superior to bucket traps and thermodynamic traps in their ability to remove air from the system. The discharging of air on start up allows steam to enter the system more quickly.
* WT2001 refer to 3/16" orifice size and should be used on all drip and tracing applications,WT2003 refer to 5/16" orifice size.
DRIP, TRACING, PROCESS: The WT2000 is a general purpose medium-capacity thermostatic trap that can be used for steam tracing, as a drip trap on steam mains and steam supply lines, as well as for process applications. They are also commonly used as an Air Vent on heat exchangers or at the ends of steam mains. Thermostatic traps are small, light weight, operate over a wide pressure range, and have excellent air handling capabilities. Discharging air at start-up allows steam to quickly enter the system. All stainless steel construction and integral strainer, make the WT2000 an excellent choice for a variety of applications. Trap body is permanently seal welded together and therefore non-repairable. Contains an extremely strong and rugged precision welded Stainless Steel thermal element which is highly resistant to water hammer.
