Seawater runs 3.1 to 3.8 percent dissolved salts by weight, mostly sodium chloride, and those chloride ions do two jobs at once. They punch through the passive oxide film that protects stainless steel, and they turn the water into a conductor that carries galvanic current between every dissimilar metal in the system. Specify a seawater valve the way you'd specify a freshwater valve and you'll be cutting it out of the line early. This guide covers why seawater corrodes valves, what a PREN number actually tells you, and which materials hold up.
Why seawater eats valves
Two attacks run at once. Chloride ions break down the chromium oxide layer that makes stainless "stainless," and once that film fails locally you get pitting and crevice corrosion. Pitting bores narrow holes straight through a wall. Crevice corrosion hides under gaskets, in threaded joints, and beneath deposits where the water goes stagnant and the local chemistry turns aggressive.
Then there's galvinic corrosion. Seawater conducts, so pair a bronze body with a stainless stem and the less-noble metal corrodes faster than it would alone. The bronze is the anodic part and the effect depends on area ratio. Flow rate matters too. Water moving roughly 10 ft/s strips the protective film off many copper alloys (e.g., bronzes, brasses) and causes erosion-corrosion on the downstream side of any restriction. Stagnant water invites the opposite problem: microbiologically influenced corrosion, where sulfate-reducing bacteria set up shop under biofilm and pit the metal from the inside of the colony out.
So a seawater valve has to survive chloride pitting, crevice attack, galvanic coupling, and flow effects at the same time. One weak link and the valve fails at that point.
Reading PREN: the number that ranks alloys
PREN stands for Pitting Resistance Equivalent Number, and it ranks how well an alloy resists chloride pitting. The common formula:
PREN = %Cr + 3.3 × %Mo + 16 × %N
Higher is better. Run the numbers on a few alloys and the gaps are obvious.
316 stainless sits around 24 to 26. It handles splash and occasional contact, but as a wetted material in full-time seawater it pits. Field crews learn this the expensive way.
Super duplex like 2507 lands near 40 to 43, with roughly 25% chromium, 4% molybdenum, and nitrogen added. That's enough to resist pitting in warm seawater where 316 would be perforated.
The 6% molybdenum super austenitic 254 SMO runs about 42–43 and AL-6XN about 43–47. Alloy 20 sits lower, around 30, which helps with sulfuric acid service more than it helps with chloride.
Treat PREN as a ranking tool, not a pass/fail line. A PREN above 40 is the usual target for ambient seawater, and you raise that target as temperature climbs because warmer seawater pits more aggressively. Crevice corrosion starts below the pitting threshold, so geometry and gasket choice still matter even with a high-PREN alloy.
Not sure what PREN your temperature and chloride load actually call for? Talk to a ValveMan engineer at 888-825-8800 — real engineers, not a call center.
Materials that hold up
Super duplex (2507 / F53 / F55). The workhorse for serious seawater duty. PREN in the low 40s, roughly twice the yield strength of 316, and good resistance to chloride stress-corrosion cracking. The strength lets you run thinner walls at the same pressure, which drops weight on offshore skids. Watch the temperature ceiling: duplex grades are generally limited to about 600°F because of embrittlement.
6-Mo super austenitics (254 SMO / AL-6XN). PREN in the mid-40s and better crevice resistance than duplex in warm, stagnant seawater. Fully austenitic, so they stay tough at low temperatures and weld without the ferrite-balance fuss of duplex. They cost more, and strength is lower than super duplex, so walls run thicker.
Nickel-aluminum bronze (NAB, C95800). The traditional seawater valve body, and still a strong pick for pumps, large ball and butterfly valves, and anywhere flow stays moving. NAB forms a tough protective film and resists biofouling better than stainless. Keep velocity under about 10 to 12 feet per second to avoid erosion-corrosion, and don't park it next to large bare steel structures that will drive galvanic attack.
Titanium (Grade 2). Effectively immune to seawater chloride corrosion at any temperature you'll see in a cooling loop. Titanium is the default for plate heat exchangers and high-reliability naval and desalination service. It's expensive and it galls, so stem and seat design need attention, but for corrosion it simply doesn't quit.
Monel and C-276. Nickel-copper (Monel 400) and nickel-chromium-moly (Hastelloy C-276) handle seawater plus chemical contamination, high velocity, or elevated temperature. These are specialty choices where super duplex or 6-Mo won't cover the chemistry.
Picking a valve type
Match the type to the job, not just the body alloy.

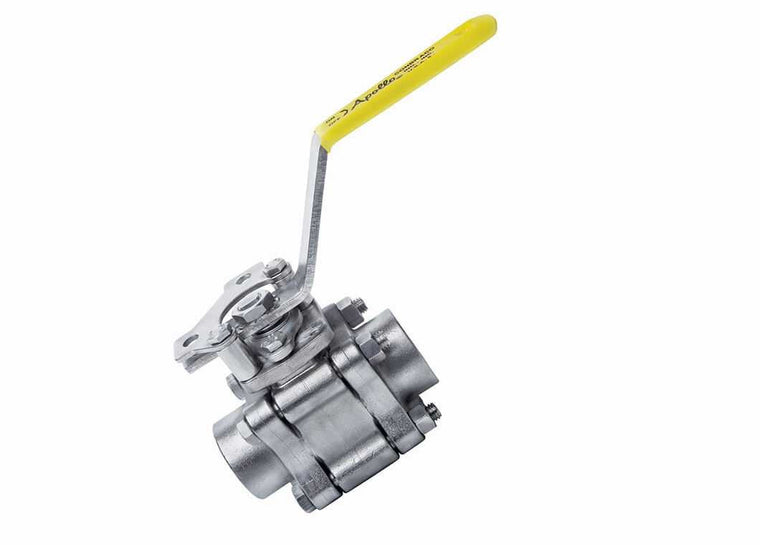

Ball valves give tight shutoff and a straight-through port with high Cv. In super duplex or 6-Mo they suit isolation duty where you want low pressure drop and bubble-tight closure. Specify the ball, stem, and seats in corrosion-resistant material, not just the body, because seawater finds the cheapest part first. Our ball valve breakdown walks through models worth knowing.
Butterfly valves with a NAB or super duplex body and a corrosion-resistant disc run large seawater lines at low weight and cost. They're common on ballast and cooling-water headers. Watch the disc edge and shaft for crevice spots at the seat.
Check valves keep seawater from backflowing into pumps and condensers. Wafer and dual-plate designs in super duplex or NAB are standard. Confirm the spring and hinge pin are as corrosion-resistant as the body. If you're sizing backflow protection, our check valve guide covers the common designs.
Globe valves handle throttling on cooling loops where you're controlling flow, not just isolating. Erosion-corrosion hits the trim hardest, so seat and plug material rate above the body here.
Got a valve type picked but unsure how the trim holds up at your velocity? Call a ValveMan engineer at 888-825-8800 before you commit.
Don't skip the small parts
A super duplex body bolted up with the wrong fasteners still fails. Use fasteners that match or beat the body alloy; plain stainless bolts in a seawater flange are a galvanic liability. For seawater, PTFE and graphite-filled gaskets or high-grade elastomers (EPDM, certain fluoroelastomers) resist chloride attack and fill crevices cleanly. Any dissimilar-metal junction wants isolation or a sacrificial anode plan so the valve isn't the piece that corrodes.
Coatings and cathodic protection extend life on bronze and coated-steel components, but they don't turn a 316 valve into a seawater valve. Pick the right base alloy first, then protect it. Once it's in service, our valve maintenance guide keeps it running.
| Material Grade | PREN / Rating | Key Advantages | Limits & Considerations | Applications |
|---|---|---|---|---|
| Super Duplex 2507 / F53 / F55 | PREN ~40–44 |
|
Temp limit ~600°F due to risk of embrittlement.[cite: 2] Requires strict ferrite-balance control during welding.[cite: 2] |
Offshore skids, seawater pressure piping, valve bodies[cite: 2] |
| 6-Mo Super Austenitic 254 SMO / AL-6XN | PREN ~45+ |
|
Lower yield strength than Super Duplex (requires thicker walls). Higher material cost. | Warm/stagnant seawater, low-temp service, piping |
| Nickel-Aluminum Bronze NAB / C95800 | Copper Alloy |
|
Keep fluid velocity < 10–12 ft/s to prevent erosion-corrosion. Avoid coupling to large bare steel structures (galvanic risk). |
Pump casings, large ball valves, butterfly valves |
| Titanium Grade 2 | Reactive Metal |
|
Expensive material. Prone to galling—requires targeted stem and seat design. |
Plate heat exchangers, naval applications, desalination |
| Monel & Hastelloy Monel 400 / C-276 | Ni-Cu / Ni-Cr-Mo |
|
High-cost specialty choice; used when Super Duplex or 6-Mo cannot meet chemistry requirements. | Extreme chemical environments, high-severity service |
Match the spec to the service
Pulling it together: for ambient-temperature seawater isolation, super duplex ball and butterfly valves hit the PREN target with strength to spare. For warm or stagnant service where crevice corrosion is the threat, step up to 6-Mo austenitics. For moving flow in pumps and large lines, nickel-aluminum bronze earns its long track record. For heat exchangers and zero-compromise reliability, titanium. And where chemistry gets ugly, Monel or C-276.
Get the body, trim, fasteners, and gaskets pulling in the same direction and a seawater valve lasts. Mismatch any one of them and seawater finds it.
