How to Choose a Digital Flow Meter for Your Application

Start With the Fluid, Then Accuracy, Then Budget

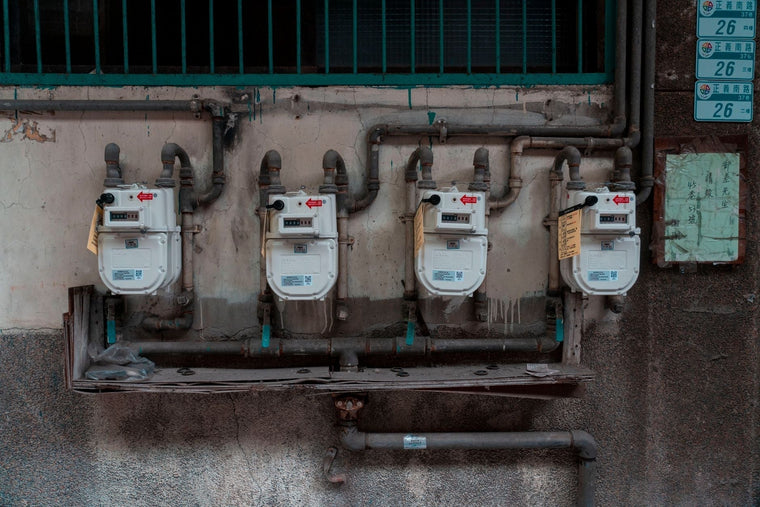

A digital flow meter pairs a sensing technology with an electronic transmitter and a usable output: 4-20mA, pulse, HART, or Modbus. Selecting a digital flow meter is much more than a question of display type, or whether you want a digital readout versus an analog mechanical dial. What actually matters is the measurement principle behind the transmitter, because that principle decides what fluids you can measure, how accurately, and what your piping has to look like.

One approach is selection by elimination. Rule technologies out in this order: first the fluid compatibility (liquid, gas, or steam, plus conductivity, viscosity, and any entrained gas or solids), second the accuracy and turndown you genuinely need from your meter, third the installation constraints your pipe layout imposes (if any), and fourth total cost of ownership rather than sticker price.

Six technologies cover most industrial applications: electromagnetic, ultrasonic, Coriolis, vortex, thermal mass, and differential pressure. Each section below tells you when a flow meter technology is the right call and when it's physically off the table.

Electromagnetic (Mag) Meters: The Default for Conductive Liquids

Mag meters run on Faraday's law of electromagnetic induction. A conductive fluid moving through a magnetic field generates a voltage that is proportional to fluid velocity. Nothing blocks the flow path, nothing rotates, and pressure drop is minimal.

The primary selection criteria is strict. Mag meters need a conductive fluid to work, in general a minimum fluid conductivity of roughly 5 µS/cm is required, while some models require at least 20 µS/cm. Hydrocarbons, gases, distilled water, and deionized water all fall below that limit. Put a mag meter on a fuel line (petrol, diesel or kerosene) and it doesn't work, full stop.

Water and wastewater sit within a mag meter's operating window. Drinking water typically runs 50-500 µS/cm, ten to a hundred times the minimum, which is why a municipal water treatment plant is wall-to-wall mag meters. If your fluid is conductive water or slurry, start your digital flow meter shortlist with an electromagnetic flow meter and make the other technologies argue their way in.

Three installation rules protect the meter accuracy you paid for. Size the meter for 3 to 10 ft/s (1-3 m/s) fluid velocity, which often means a meter one size smaller than the line. The pipe must run completely full for effective metering, so specify empty-pipe detection on any line that can drain down. On PVC, plastic or lined pipe, install grounding rings; these provide a reference potential between the meter and fluid, meaning that stray currents can't interfere with meter readings.

Not sure if your fluid clears the conductivity floor? Call a ValveMan engineer at 888-825-8800 — real engineers, not a call center — and we'll check it before you spec the wrong meter.

Ultrasonic Meters: Transit-Time, Doppler, and the Clamp-On Advantage

Ultrasonic meters operate using one of two sound-based measurement principles, transit-time and Doppler. Transit-time meters (also known as time-of-flight meters) measure the difference in travel time between sound pulses that travel with and against the flow. These meters require clean fluids to operate effectively. Doppler units emit a high frequency sound wave that reflects off particles or bubbles in the fluid, measuring the shift in frequency. Doppler meters need some dirt or aeration in the fluid to work at all. Between the two measurement technologies, ultrasonic meters cover clean and dirty liquids and gases. An added benefit is that ultrasonic meters can measure bidirectional flow, which few other technologies manage.

The clamp-on variant ultrasonic flow meter is the real differentiator, and in some cases can be a game changer. Clamp-on ultrasonic flow meter transducers mount on the outside of the pipe, which means that you get flow measurement with no process shutdown, no wetted parts, and no added pressure drop. For retrofits, temporary surveys, and verification checks against an installed meter, nothing else comes close.

Costing favors clamp-on meters as pipes get bigger. A 12-inch mag or Coriolis meter is priced on its 12-inch flanged body, while a clamp-on transducer set costs about the same on a 2-inch utility line and on a 12-inch pipe main. On large-diameter bulk water lines, clamp-on ultrasonic flow meters are often the cheapest credible option.

Be aware of the following ultrasonic flow meter limitations. Straight-run requirements apply for accurate readings, these are generally 10 times the pipe diameter (10D) upstream and 5 times the diameter (5D) downstream, remember to check this in the manufacturer documentation. Pipe wall condition may work against you; liners, scale buildup, corrosion, and acoustic noise from nearby pumps may degrade the reading. For billing-grade meters or custody-transfer measurement, a clamp-on ultrasonic flow meter is the wrong tool. Use it where convenience and cost matter more than accuracy to decimal percentages.

Coriolis Meters: Buy Accuracy and Mass Flow, Pay Up Front

A Coriolis meter vibrates one or two tubes housed within the meter, and measures the force induced by the fluid flowing through the tubes (Coriolis force), which is directly related to the mass flow rate of the fluid. Coriolis meters measure mass flow directly, and they also measure density and temperature. One meter, three process variables.

The performance numbers explain the price tag. Typical accuracy is ±0.1% of rate, with ±0.05% available on premium models. Turndown runs up to 100:1 in general; curved-tube designs reach 100:1 to 200:1, while straight-tube designs top out around 30:1 to 50:1. Custody transfer and billing applications typically demand ±0.1% accuracy or better, and Coriolis meters meet that spec routinely. If money changes hands on your measurement, spec a Coriolis flow meter.

Coriolis meters have little to no straight-run requirement. On a cramped skid with six pipe diameters available between fittings, that single fact can eliminate vortex and DP meters before you even open a datasheet.

Considering failure modes, entrained gas renders Coriolis meters inaccurate, as bubbles in the fluid interfere with the measurement. In published test-loop data as per U.S. Patent Application Publication No. US 2008/0223129 A1), just 2% entrained air caused a Coriolis meter to over-report mass flow by 15%. That's a 150x error amplification on a meter you bought specifically for precision. De-aerate the line upstream of the meter, optimize the meter installation position and orientation, or increase the velocity through the meter. If all else fails, you might have to pick a different meter technology.

When it comes to cost, think in terms of years of service rather than upfront cost only. Purchase price runs roughly 20-40% above a turbine or DP meter, but recalibration intervals of 5-10 years cut lifetime costs when compared with instruments that need annual attention. A meter that's 30% more expensive up front and needs a fifth of the calibration visits usually wins the ten-year math.

Custody-transfer decisions carry real money. Walk the numbers through with a ValveMan engineer at 888-825-8800 before you commit to a flow meter spec.

Vortex Meters: The Steam Workhorse

Put a bluff body in a flow stream and vortices peel off downstream, alternating from each side. That pattern is the Kármán vortex street, and its shedding frequency is proportional to fluid velocity. A vortex meter counts those vortices electronically, with no rotating parts to wear out.

For steam, saturated or superheated, buy a vortex meter. Mag meters can't measure steam because it isn't conductive. Coriolis meters at steam temperatures gets expensive as specialized, high-temperature models are required. Vortex flow meters handle the heat, tolerate the service, and deliver around ±1% accuracy, which is adeqaute for boiler efficiency tracking and steam allocation. A vortex flow meter is the default answer on a steam header, and the burden of proof sits on any alternative.

Plan the piping before you order. Vortex meters typically need 10-15 pipe diameters of upstream straight run, but this may be as large as 25-50D depending on the upstream flow-disturbing fitting, and about 5D downstream. Compare that against the near-zero requirement of Coriolis meters; on a congested rack, straight run alone can decide the technology.

Watch for low-flow performance dropoff. Below a minimum velocity the vortices stop forming cleanly and the signal disappears entirely rather than degrading slowly. Size the meter for your real operating range, including turndown and startup conditions, instead of matching it to the pipe diameter.

Thermal Mass and DP Meters: Gas Specialists and the Cheap Old Standby

Thermal Mass: Gas Only, and Know Your Gas

Thermal dispersion meters hold a heated sensor in the gas stream and measure how much heat the flow carries away. That heat transfer is proportional to the mass of gas passing, so the meter reads gas mass flow directly, with no moving parts and no pressure or temperature compensation required. It excels at low gas flows, which is where most other technologies go blind, making it the practical choice for compressed air auditing, natural gas submetering, and flare gas monitoring.

Two elimination rules apply. Liquids are off the table entirely, and the meter is calibrated to a specific gas composition, because heat transfer depends on the gas's thermal properties. If your gas blend is altered, the meter reading loses accuracy. A thermal mass meter calibrated for air will misread a nitrogen line. Plan for roughly 10D upstream and 5D downstream of straight run.

Differential Pressure: Simple, Cheap, Narrow

The DP meter is the oldest trick in the book. Force the flow through a constriction, usually an orifice plate, and measure the pressure drop across it. Differential pressure is proportional to velocity squared, and a transmitter converts that ΔP to flow.

The squared relationship is exactly what limits the technology. At 10% of maximum flow, the ΔP is only 1% of the full-scale differential, and the transmitter is trying to resolve a whisper. Practical turndown lands at 3:1 to 10:1. Straight-run needs are heavy at roughly 20D upstream and 5D downstream, and the orifice takes a permanent pressure loss that your pumps or compressors pay for as long as the line runs.

For steady, predictable flow measurement on a tight budget, DP meters work, and they works on liquids, gases, and steam alike. For wide-ranging flows, low flows, or anything billing-related, it's the wrong choice.

Side-by-Side Comparison and the Specs That Lie

Run one illustrative number before you decide whether accuracy is a luxury or a necessity. Suppose a custody-transfer line moves 500,000 barrels a year at an assumed $70 per barrel, which is $35 million of product crossing the meter. A ±0.5% meter leaves $175,000 a year in dispute range. A ±0.1% meter cuts that exposure to $35,000. Your product, throughput and price will differ, but the basic arithmetic still applies; at custody-transfer volumes, the accuracy premium on a Coriolis meter can pay itself back in months.

Talk It Through Before You Order

Selecting the wrong flow meter or incorrect measurement principle can become an expensive lesson. If you tell us your fluid, your accuracy target, your process requirements and your pipe layout, we can rule out incompatible technologies and get you to the right meter for your application. Call our team in Exton, PA at 888-825-8800 — real engineers, not a call center — or reach us through our contact page and we'll work through the flow meter selection with you.
