A solenoid valve is the cheapest, fastest way to put a fluid line under electrical control. It is also one of the most commonly mis-specified valves we see. Most returns and field failures trace back to three mistakes: the wrong operating principle for the available pressure, a coil doomed by the application, or a valve sized by pipe diameter instead of flow coefficient. This guide walks through all three, with worked numbers, so you get it right the first time.
What a Solenoid Valve Is and How It Works

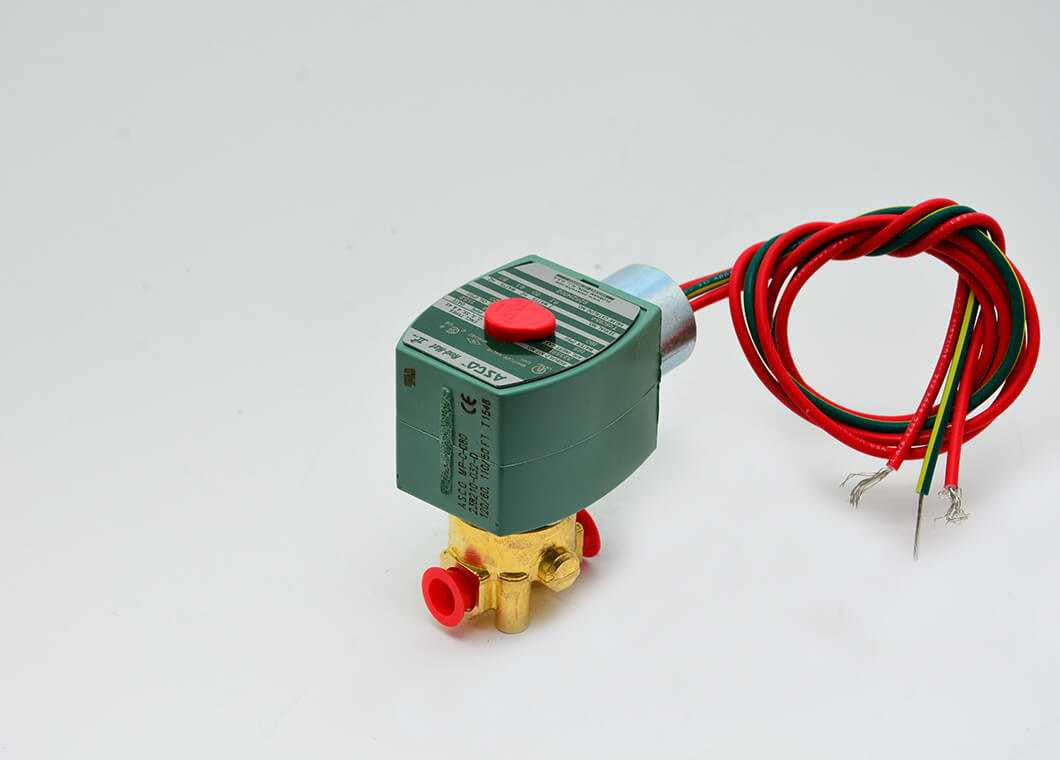

A solenoid valve is an electromechanically operated valve. Current through a wound coil creates a magnetic field, that field pulls a plunger (armature) against a spring, and the plunger's motion opens or closes an orifice. Kill the power and the spring returns the plunger to its resting position. The core parts are simple: coil, plunger, spring, seat, orifice, and a soft seal.
Standard solenoid valves are binary devices. They sit fully open or fully closed, with nothing in between. Proportional solenoid valves exist — they modulate flow continuously with input current — but they form a different product class, and this guide covers the on/off workhorses that handle the vast majority of industrial duty.
That simplicity is the appeal. You get compact, fast, low-cost electrical shutoff for clean fluids at moderate flows. The selection details below determine whether that appeal survives contact with your actual process.
Direct-Acting vs Pilot-Operated: The First Decision That Sinks Most Orders
Every solenoid valve on the market falls into one of two operating principles, and picking the wrong one is the single most common specification error we see. Here is the short version: a pilot-operated valve installed on a gravity-fed tank or a closed loop will never operate reliably. It is not defective. It was simply the wrong valve.
Direct-Acting Valves
In a direct-acting valve, the plunger opens the main orifice directly. The magnetic force does all the work, so the valve has a zero minimum pressure requirement, and most direct-acting designs handle vacuum down to -14.7 psig. Response is fast — typically 5 to 10 milliseconds. The tradeoff is power: direct-acting coils commonly draw 5–20 W, more than a comparable pilot-operated design, and the magnetic force limits how large an orifice the plunger can lift against high pressure.
Pilot-Operated (Servo-Assisted) Valves
A pilot-operated valve cheats. The plunger opens only a small pilot passage, and line pressure acting across a diaphragm does the heavy lifting on the main orifice. That design uses less energy and scales to larger sizes economically. It also carries two hard limitations. First, it typically needs a minimum pressure differential of about 0.5 bar — roughly 7 psi — between inlet and outlet to open, which rules out gravity feed, closed circuits, and low-inlet-pressure systems. Second, that small pilot passage clogs more easily from solid impurities than a direct-acting orifice. Response runs roughly 15 to 150 milliseconds depending on size.
Quick Comparison
| Attribute | Direct-Acting | Pilot-Operated |
|---|---|---|
| Minimum differential | Zero (vacuum to -14.7 psig on most) | ~7 psi (0.5 bar) typical |
| Response time | ~5–10 ms | ~15–150 ms |
| Power draw | Commonly 5–20 W | Lower for comparable size |
| Dirt tolerance | Better | Pilot passage prone to clogging |
| Gravity feed / closed loop | Yes | No |
Our recommendation is blunt: if you cannot guarantee at least 7 psi of differential under worst-case conditions — startup, low tank level, downstream backpressure — buy direct-acting and accept the higher coil wattage. A valve that opens every time beats a valve that saves watts.
Not sure you'll hold 7 psi at worst case? Talk to a ValveMan engineer — real engineers, not a call center — at 888-825-8800 before you order.
MOPD and Minimum Differential, in Plain Numbers
MOPD — maximum operating pressure differential — is the largest inlet-to-outlet pressure difference against which the solenoid can safely operate the valve. It is a magnetic-force limit, and it differs from the body pressure rating. Confusing the two is a quiet, expensive mistake.
Work the numbers on a real scenario. Your inlet runs at 80 psi and your outlet sits at 10 psi, so the valve must open against a 70 psi differential. A valve with a 50 psi MOPD will not open in that service, even if its body is stamped for a much higher static pressure. The coil simply cannot generate enough force to lift the plunger against 70 psi of unbalanced load. The body rating tells you what the valve can contain; the MOPD tells you what it can operate against.
MOPD and minimum differential sit at opposite ends of the same spec. MOPD is a ceiling that applies to every solenoid valve. Minimum operating differential is a floor that applies to pilot-operated designs. Check your worst-case operating conditions against both before you order.
Configurations: NC vs NO, 2-Way, 3-Way, and Shorthand Like 3/2
Normally closed (NC) means the valve is shut when the coil is de-energized; normally open (NO) means the opposite. Choose based on fail-safe logic, not convenience: when power fails, what must the process do? A fuel line should stop flowing, so it gets NC. A cooling-water circuit protecting hot equipment may need to keep flowing, so it gets NO. We default to NC unless the process specifically demands flow on power loss, because NC also spends less energy in systems that stay closed most of the time.
Port count comes next. A 2-way valve has one inlet and one outlet and does simple shutoff. A 3-way valve adds a third port for diverting, venting, or pilot duty, and you will see the shorthand 3/2 — three ports, two positions. A 4-way or 5-way valve (5/2 in shorthand) shuttles air between both sides of a double-acting pneumatic cylinder.
One configuration deserves special mention because competitors barely cover it: NAMUR-interface solenoid valves. The NAMUR pattern is a standardized mounting footprint that lets a 3/2 or 5/2 pilot solenoid bolt directly onto a pneumatic actuator, eliminating the tubing and fittings between the two. If you are piloting spring-return or double-acting actuators on ball or butterfly valves, specify NAMUR mounting and save yourself the plumbing.
Sometimes the honest answer is that a solenoid valve is the wrong tool. Larger lines, dirty media, and high Cv requirements are better served by a pneumatically or electrically actuated quarter-turn valve. See our guide at actuated ball valves vs solenoid valves for where that line sits.
Sizing with Cv: A Worked Example
Cv is the number of U.S. gallons per minute of 60°F water that will flow through the valve at a 1 psi pressure drop. For liquids, the formula is:
Cv = Q × √(SG / ΔP)
where Q is flow in GPM, SG is specific gravity (water = 1.0), and ΔP is the allowable pressure drop in psi.
Run a worked example. You need 10 GPM of water and can tolerate a 5 psi drop across the valve. Then Cv = 10 × √(1/5) = 10 × 0.447 ≈ 4.5. Any valve with a rated Cv of 4.5 or better satisfies the flow requirement, regardless of its port size. Size by Cv first and match pipe size second — a 1/2" valve with the right Cv beats a 3/4" valve chosen because the pipe was 3/4".
European datasheets list Kv instead, the metric equivalent defined on cubic meters per hour and bar. The two are not interchangeable numbers, so convert before comparing. Our primer at valve flow coefficient (Cv) explained goes deeper.
Resist the urge to oversize generously. Solenoid valves close fast, and fast closure in liquid systems can generate water hammer — pressure transients that hammer pipe, gauges, and the valve itself. Oversizing raises the flow the valve can slam shut against. Undersizing starves the process instead. Aim for the calculated Cv with modest margin.
Gases and steam are compressible and size on entirely different formulas. Do not apply the liquid equation to air or steam service. Call us at 888-825-8800 and we will run the sizing with you.
Send us your flow, ΔP, and media — a ValveMan engineer will run the Cv (or the compressible-flow math) with you at 888-825-8800.
Body and Seal Materials: Matching the Valve to the Media
Brass is the most common solenoid valve body material, and for good reason — it handles water, air, and light oils economically. Browse brass solenoid valves for that duty. Stainless steel, typically 316, is the recommended step up for steam, corrosive media, and washdown environments; see stainless steel solenoid valves.
The seal matters just as much as the body. NBR (Buna-N) is the standard elastomer and serves to roughly 194°F, which covers most water, air, and oil applications. Above that, or with tougher media, you climb the ladder: FKM (Viton) is the usual pick for hydrocarbons and higher temperatures, EPDM suits hot water and steam (note: EPDM is strictly incompatible with oils and petroleum hydrocarbons), and PTFE handles aggressive chemicals. Always verify the specific seal against your specific media — our seal and seat material compatibility guide lays out the pairings.
Steam deserves its own paragraph because most selection guides give it one line. For steam, skip brass-and-NBR construction entirely and specify a stainless body with PTFE seals. Also confirm the derated MOPD and coil rating at your actual service temperature on the manufacturer's datasheet, because published room-temperature figures do not hold at steam conditions. Our steam valve selection guide covers the broader decision.
If your application demands bubble-tight shutoff, do not assume it — ask for it. Seat leakage testing follows standards such as MSS SP-61 or ISO 5208, and a valve tested to a named standard gives you a defensible spec.
Matching seals to a tough or hot medium? Don't guess — a ValveMan engineer will confirm the body/seal pairing for your service. Call 888-825-8800.
Coils, Voltage, and Enclosures: Preventing the Most Common Failure
Here is the failure mode that fills warranty bins: AC coil burnout. When an AC coil energizes, it draws inrush current up to roughly five times its holding current until the armature seats and closes the air gap. If the plunger cannot seat — blocked by debris, fighting a differential above the MOPD, or installed in a pilot-operated valve with no differential to work with — the coil sustains that inrush indefinitely and cooks itself. It is the most common electrical failure in solenoid valves, and in our experience it is almost always a selection or filtration problem, not a coil defect.
Common coil voltages are 120VAC, 240VAC, 24VDC, and 12VDC, and coils typically tolerate roughly -15%/+10% of rated voltage. Check your actual supply voltage at the valve, not at the panel. DC coils avoid the inrush spike and the characteristic AC hum, at the cost of somewhat slower pull-in. In modern control panels already running 24VDC I/O, we recommend 24VDC coils as the default because they remove the burnout-by-stalled-inrush failure mode entirely.
Match the coil to its environment, too. Read the insulation class (Class F and Class H handle progressively higher winding temperatures), confirm a continuous-duty rating if the valve will sit energized for long stretches, and specify the enclosure by NEMA or IP rating for washdown or outdoor service. Where codes apply, verify UL/CSA listings, and for classified areas specify hazardous-location coil constructions up front rather than retrofitting later.
Selection Checklist and When to Call an Expert
Run every solenoid valve purchase through this sequence:
- Define the media, temperature, and pressure — worst case, not nominal.
- Set fail-safe logic: NC or NO on power loss.
- Choose direct-acting or pilot-operated based on the available differential, then verify MOPD.
- Calculate the required Cv and size by flow, not pipe diameter.
- Match body and seal materials to the media and temperature.
- Select coil voltage, insulation class, enclosure rating, and any approvals.
- Add upstream filtration if a pilot-operated valve will see anything but clean fluid.
Most burned coils and clogged diaphragms we hear about were purchased wrong, not built wrong. If any step above leaves you unsure — especially compressible-flow sizing or steam service — talk to people who have specified valves since 1965. Call ValveMan at 888-825-8800, Mon–Fri 8:00 AM–6:00 PM, or reach us through our contact page, and browse the full range at solenoid valves.
Get the Spec Right the First Time
Work the seven steps above and you'll dodge the three failures that fill warranty bins. When a differential, a Cv, or a steam spec still has you second-guessing, put our 60+ years to work — real engineers in Exton, PA, not a call center.
Call ValveMan at 888-825-8800, Mon–Fri 8:00 AM–6:00 PM, or reach us through our contact page. We'll help you nail the operating principle, the Cv, and the coil the first time.
FAQ
What is a solenoid valve and how does it work? A solenoid valve is an electromechanically operated valve. Energizing the coil creates a magnetic field that pulls a plunger against a spring, opening or closing the fluid path. Standard units are on/off devices — direct-acting types respond in roughly 5–10 milliseconds, pilot-operated types in about 15–150 milliseconds depending on size.
Do solenoid valves work at zero pressure or on gravity feed? Direct-acting and semi-direct (zero-differential lift-assisted) valves do. Pilot-operated valves need about 7 psi (0.5 bar) of differential to lift the diaphragm, so on gravity-fed tanks, closed loops, or low-pressure systems they will not open. This is the single most common solenoid valve selection mistake.
How do I size a solenoid valve using Cv? Cv is the flow of 60°F water in GPM at a 1 psi drop, and for liquids Cv = Q × √(SG/ΔP). For example, 10 GPM of water with a 5 psi allowable drop needs a Cv of about 4.5. Gases and steam use different formulas, so call 888-825-8800 if your media is compressible.
Why do solenoid valve coils burn out? AC coils draw inrush current up to roughly five times holding current until the plunger seats. If the plunger stays blocked by debris, excess differential, or the wrong valve type for the pressure conditions, the coil sustains that inrush and overheats. Correct selection and upstream filtration prevent most burnouts.
Can solenoid valves handle steam or aggressive chemicals? They can, with the right construction. Steam calls for a stainless steel body and PTFE seals, since NBR tops out around 194°F. For aggressive chemicals, match the seal to the media — FKM, EPDM, or PTFE as appropriate — and verify body compatibility before ordering.
