A single piece of weld slag can damage a control valve seat, jam a solenoid valve, or score a pump impeller. The fitting that stops it costs a fraction of any of those repairs, not to mention down-time and production losses. A Y-strainer is the cheapest protection you can put in a pipeline, however it only works if you spec the right screen, body, and orientation. This guide covers how Y strainers work, how to pick mesh size, what the pressure classes actually mean, which end connections fit which service, and how to install and clean these devices so that they keep doing their job.
What Is a Y-Strainer and How Does It Work

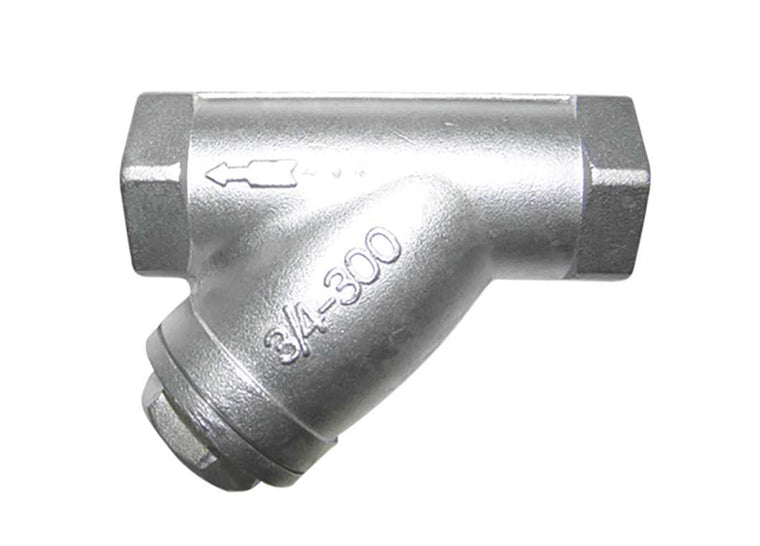

A Y-strainer is a compact inline mechanical filter that is installed in pipelines to remove debris. The body has a main run and an angled branch, which gives it a Y-shape, hence the name. A cylindrical screen is seated in the strainer branch pocket. Fluid enters the fitting, passes through the screen element, and continues downstream. Solids too large to pass through the screen openings remain trapped the pocket, this might include rust flakes, pipe scale, sand, grit, weld slag. Debris continues to build up until the screen is flushed or removed and cleaned.
The Y-strainer design works in liquids, gases, and steam. You'll see the same device called a Y strainer, a wye strainer, or a Y strainer filter. All three names describe one product. Keep the terminology straight in your own head, a strainer typically catches coarse, visible solids in order to protect downstream equipment, while a filter removes fine, microscopic particles in order to purify the fluid itself.
The equipment a Y strainer protects reads like a plant's most expensive small-parts list: pump internals, control valves, solenoid valves, steam traps, flow meters, and spray nozzles. Anything with a small clearance or a precision seat should sit downstream of a strainer for a reason.
Start With What You're Protecting: Mesh and Micron Selection
Most selection guides start with the strainer. We recommend that you spend some time considering the downstream equipment instead. Find the smallest clearance you're protecting, whether that's a nozzle orifice, a trap seat, a pump's internal running clearance, or equipment solids handling capabilities. Then, pick a screen one step finer than the particle that would damage it. Everything else in the spec follows from that number.
Two units describe screen openings. Mesh count is the number of openings per linear inch of woven wire cloth, governed by ASTM E11. Micron rating is the actual opening size. Higher mesh count means smaller openings. Strainer screens typically run from 3 mesh, with openings around 6730 microns, down to 400 mesh at roughly 37 microns. Two common mesh specs cover most jobs: 20 mesh is about 840 microns, and 100 mesh is about 149 microns.
For general pump-inlet debris protection, 20 mesh is usually enough. Precision spray nozzles, meters, and small solenoid orifices need 100 mesh or finer. Our recommendation after 60+ years of speccing these: default to 20 mesh for pump protection and go finer only when the downstream clearance forces you to.
Screen construction matters too. Coarse duty uses perforated plate. On Class 150 carbon steel flanged units, standard screens run 1/32 in to 1/8 in, in 304 stainless steel, with hole size varying by strainer size. Fine woven wire cloth lacks the strength to withstand line pressure, so fine screens are commonly built as mesh supported by a coarser perforated backing.
Steam service deserves its own warning. High-velocity steam erodes fine wire, a failure mode called steam cutting, and a shredded screen protects nothing. Go coarser in steam than you would in comparable liquid service, and let the trap or downstream device tolerance set the limit.
The last mistake to avoid is over-speccing. A finer screen catches more, but it also clogs faster and adds more pressure drop for the pump to overcome. Pick the coarsest screen that still protects the component. Fine straining is a filter's job, and asking a Y strainer to do it means you'll be cleaning the screen regularly.
Stuck between two mesh sizes for a given piece of equipment? Call 888-825-8800 and talk it through with a ValveMan engineer — real engineers, not a call center.
Body Material and Pressure Class
Match the body material to the service fluid first. Bronze suits water and HVAC duty. Cast iron and ductile iron cover low-pressure utility water lines. Carbon steel is the workhorse for steam and higher-pressure process service. For chemical and corrosive media, step up to 316 stainless. Screens are typically 304 or 316 stainless regardless of body material. Confirm the screen alloy separately from the body, especially in sour or corrosive service where NACE-compliant trim may be required. Our position on steam is simple: use a carbon steel body with a stainless screen, and keep iron bodies on utility water where they belong.
Now on to the part most guides skip. An ANSI/ASME pressure class such as 150, 300, 600, or 1500 names a rating family under ASME B16.34 for body ratings and B16.5 for flanges. The allowable working pressure inside that family falls as temperature rises. A Class 150 flanged carbon steel Y strainer carries roughly 285 psig at 100°F but derates to about 200 psig at 400°F. Run the numbers on a real line. Saturated steam at 150 psig sits near 366°F, so you check the rating at that temperature, and the Class 150 body still clears 150 psig with margin. Move the same body to a hotter superheated line and the margin shrinks fast. Always read the pressure rating at your operating temperature, never at ambient.
At the top of the range, Class 1500 carbon steel Y strainers reach 3705 psig at ambient temperature, with the allowable operating pressure dropping to around 2060 psig at the maximum service temperature limit of 800°F. Some Y-strainer product lines extend to Class 2500. That ceiling is one of the Y strainer's strongest selling points, because basket strainers are normally not built above about 1500 psi. When the line runs hot and hard, the Y pattern is usually the only strainer geometry available.
Not sure which body and trim combination fits your fluid and temperature? Talk to a ValveMan engineer at 888-825-8800 before you buy; we'll run the numbers together with you.
Connection Types: Threaded, Flanged, Welded, Grooved
Threaded NPT ends dominate small-bore lines in bronze and iron. They install fast and swap out cheap, which suits utility service where the strainer itself is nearly a consumable. Flanged raised-face ends to ANSI 150 or 300 take over on larger lines in carbon and stainless steel, and they give the easiest screen access in rigid piping since the cover comes off without disturbing the joints. Socket weld and butt weld ends belong on high-pressure and high-temperature steam lines where a flange gasket is a potential leakage point.
If your service is air rather than steam or liquid, have a look at out air preparation set — filter, regulator, lubricator. For sink and drain work, a sink strainer handles that duty instead of a pipeline Y strainer.
Talk to ValveMan Before You Spec
Get the screen, body, and pressure class right the first time and a Y-strainer pays for itself, from the first piece of slag it stops. The ValveMan team in Exton, PA has been speccing these since 1965, and they'll size one to suit your process, line, temperature, and downstream equipment.
