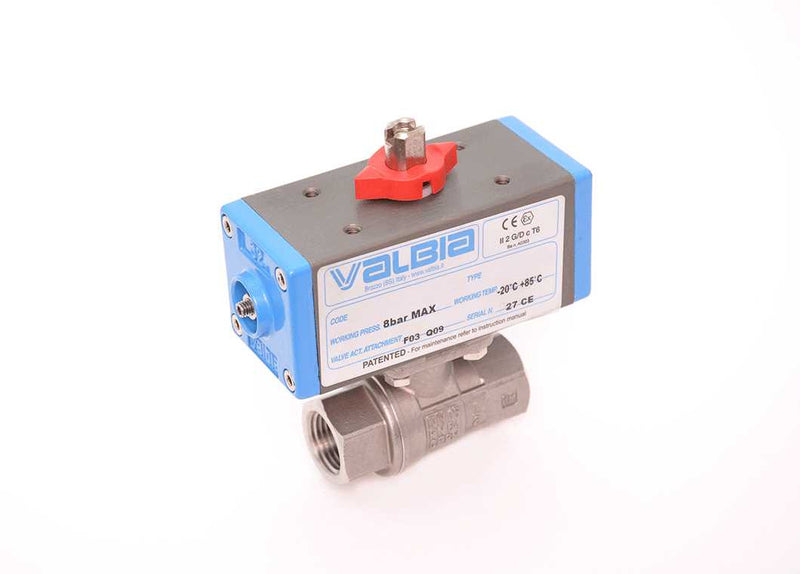

1-1/2" Bonomi 8P0133 - 2-Way, Stainless Steel Body, Full-Port, NPT, Actuated Ball Valve, with Double Acting Pneumatic Actuator.

Name: 1-1/2" Bonomi 8P0133 - 2-Way, Stainless Steel Body, Full-Port, NPT, Actuated Ball Valve, with Double Acting Pneumatic Actuator.
Brand: Bonomi Valves
SKU: 8P0133-1-1/2

SKU: 8P0133-1-1/2

Made in Italy

$472.99 Was: $557.00 You Save $84.01

Available to Order

Available Sizes

1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3"

Pipe Size1-1/2"

Max. Pressure1000 psi / 150 psi steam

Body MaterialStainless Steel

Connection TypeFNPT x FNPT

PortFull

Typically ships in 12–14 business days from the manufacturer

Need it fast? Call 888-825-8800 — we may be able to expedite your order.

Estimated ship date: calculating...

Download Specification Sheet (PDF)

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

Made-to-order — final sale, see return policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	Ball Valve w/ Double Acting (DA) Pneumatic Actuator
Max Process Temp.	-4 to 366°F
Actuation	Double Acting (DA) Pneumatic
Brand	Bonomi Valves
Manufacturer Part #	8P0133-1-1/2
Size	1-1/2"
Country of Origin	Made in Italy

Materials & Construction

Body Material	Stainless Steel
Body Style	2 Piece
Seat Material	PTFE
Ball Material	Stainless Steel (CF8M)
Stem Packing	Viton
Stem Type	Blowout Proof
Stem Material	Stainless Steel

Performance

Max. Pressure	1000 psi / 150 psi steam
Actuator Supply Pressure	Min. 80 psi and Max. 116 psi

Connections

Port	Full
Connection Type	FNPT x FNPT
Pipe Size	1-1/2"

Standards & Certifications

NACE MR 0175MR 0103ISO 15156
