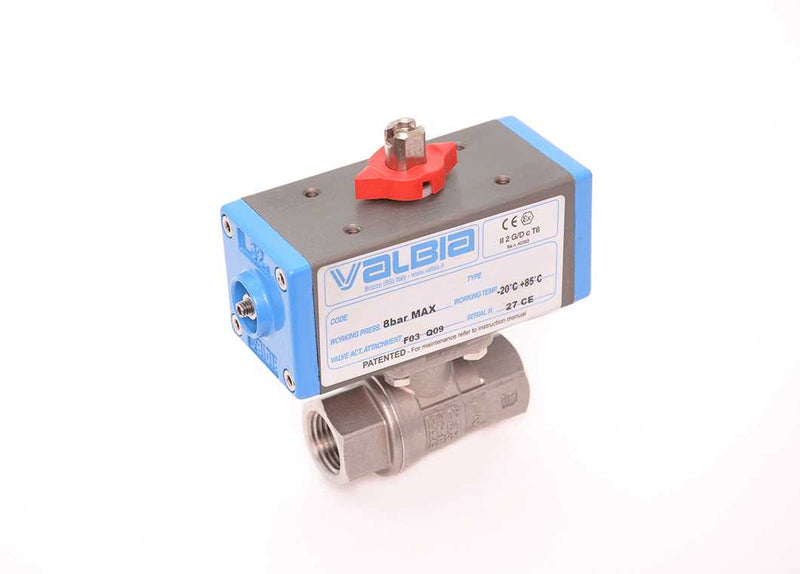

1" Bonomi 8P0133 - 2 Way, Stainless Steel Body, Full-Port, NPT, Actuated Ball Valve, with Double Acting Pneumatic Actuator.
Brand : Bonomi Valves
MSRP: $322.00
Starting At:
$280.99
(You save
$41.01
)
- Condition:
- New
- Size:
- 1"
- Size Dropdown:
- True
1" Bonomi 8P0133 - Technical Specs
Item
Ball Valve w/ Double Acting (DA) Pneumatic Actuator
Body Material
Stainless Steel
Body Style
2 Piece
Port
Full
Connection Type
FNPT x FNPT
Pipe Size
1"
Max. Pressure
1000 psi / 150 psi steam
Seat Material
PTFE
Ball Material
Stainless Steel (CF8M)
Max Process Temp.
-4 to 366°F
Stem Packing
Viton
Stem Type
Blowout Proof
Stem Material
Stainless Steel
Standards
NACE MR 0175, MR 0103, ISO 15156
Actuation
Double Acting (DA) Pneumatic
Actuator Supply Pressure
Min. 80 psi and Max. 116 psi
