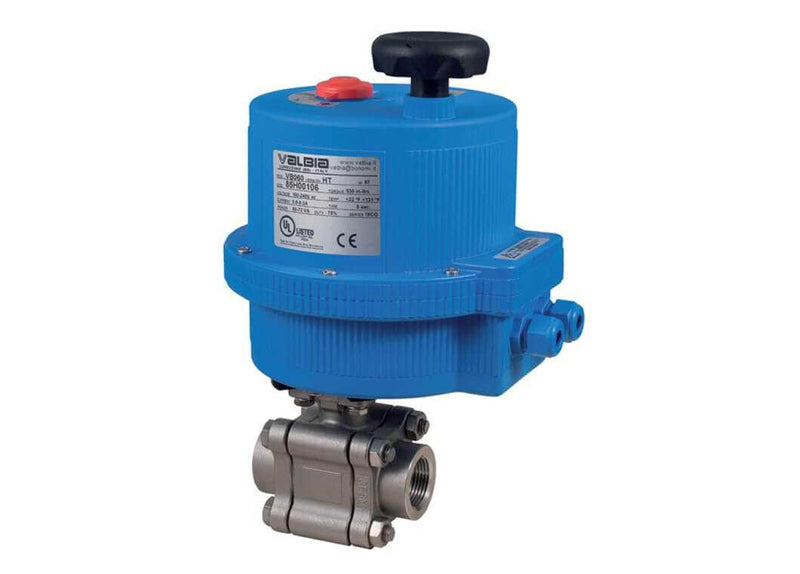

1/2" Bonomi 8E0731-00 - Ball Valve, Fire Safe, 3 Piece, 2-Way, Stainless Steel, Socket Weld, Full Port, with Electric Actuator

Name: 1/2" Bonomi 8E0731-00 - Ball Valve, Fire Safe, 3 Piece, 2-Way, Stainless Steel, Socket Weld, Full Port, with Electric Actuator
Brand: Bonomi Valves
SKU: 8E0731-002-1/2

SKU: 8E0731-002-1/2

$413.99 Was: $487.00 You Save $73.01

Available to Order

Available Sizes

1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3"

Select Voltage: 24V AC/DC

Size1/2"

Pressure Rating2160 psi, WSP - 250 psi

Body MaterialCF8M Stainless Steel

End ConnectionSocket Weld

PortFull Port

Typically ships in 12–14 business days from the manufacturer

Need it fast? Call 888-825-8800 — we may be able to expedite your order.

Estimated ship date: calculating...

Download Specification Sheet (PDF)

Sourced from Vetted Suppliers Every product is quality-checked from certified manufacturers

Need It Fast? Call 888-825-8800

Made-to-order — final sale, see return policy

Expert Support: 888-825-8800

Technical Specifications

General

Item	2-Way Electrically Actuated Ball Valve
Size	1/2"
Design Type	3-Piece
Temp Range	-50°F to 550°F
Available Actuator Voltage	12V AC/DC
Fail Position	None (Fail in Place)
Fire Safe	API 607
Duty Cycle	50% Duty Cycle (12/24V AC)
Brand	Bonomi Valves
Manufacturer Part #	8E0731-002-1/2

Materials & Construction

Body Material	CF8M Stainless Steel
Ball Material	316 Stainless Steel
Seat Material	TFM-4215
Stem Design	Grounded Ball and Stem
Stem Material	316 Stainless Steel
Packing Material	TFM

Performance

Pressure Rating	2160 psi, WSP - 250 psi
Pressure Class	Class 900
NEMA Rating	NEMA 4/4X

Connections

Port	Full Port
End Connection	Socket Weld

Standards & Certifications

See Specification Sheet
