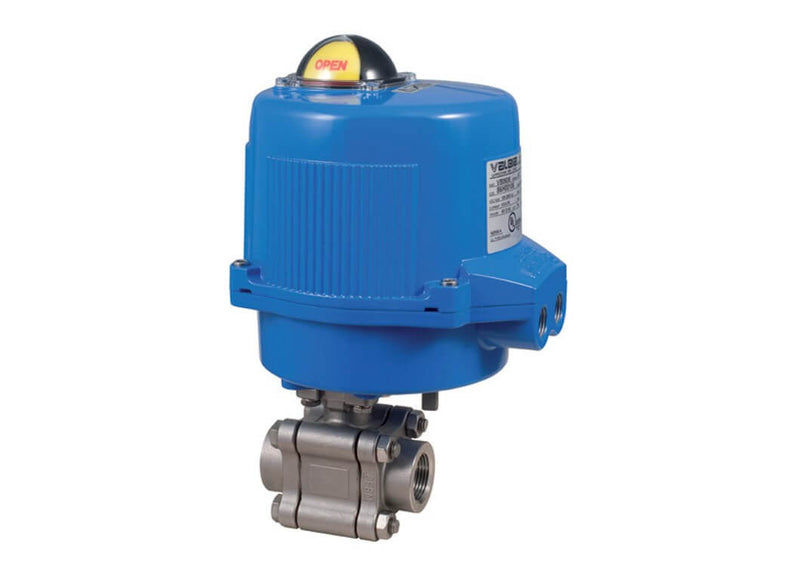

2-1/2" Bonomi 8E0731-00 - Ball Valve, Fire Safe, 3 Piece, 2-Way, Stainless Steel, Socket Weld, Full Port, with Electric Actuator
SKU:
8E0731-001-2-1/2
$1,914.99
Price on request
Was: $2,256.00
You Save $341.01
Available to Order
Select Voltage: 12V AC/DC
Size2-1/2"
Pressure Rating1500 psi, WSP - 250 psi
Body MaterialCF8M Stainless Steel
End ConnectionSocket Weld
PortFull Port
Typically ships in 12–14 business days from the manufacturer
Need it fast? Call 888-825-8800 — we may be able to expedite your order.
Estimated ship date: calculating...
Buying for a facility?
Custom quote, volume pricing, or Net 30 terms available.
Request a Formal Quote or call 888-825-8800
Sourced from Vetted Suppliers
Every product is quality-checked from certified manufacturers
Need It Fast? Call 888-825-8800
Made-to-order — final sale, see return policy
Expert Support: 888-825-8800
Technical Specifications
General
| Item | 2-Way Electrically Actuated Ball Valve |
|---|---|
| Size | 2-1/2" |
| Design Type | 3-Piece |
| Temp Range | -50> |
| Available Actuator Voltage | 12V AC/DC |
| Fail Position | None (Fail in Place) |
| Fire Safe | API 607 |
| Duty Cycle | 50% Duty Cycle (12/24V AC) |
| Brand | Bonomi Valves |
| Manufacturer Part # | 8E0731-001-2-1/2 |
Materials & Construction
| Body Material | CF8M Stainless Steel |
|---|---|
| Ball Material | 316 Stainless Steel |
| Seat Material | TFM-4215 |
| Stem Design | Grounded Ball and Stem |
| Stem Material | 316 Stainless Steel |
| Packing Material | TFM |
Performance
| Pressure Rating | 1500 psi, WSP - 250 psi |
|---|---|
| Pressure Class | Class 600 |
| NEMA Rating | NEMA 4/4X |
Connections
| Port | Full Port |
|---|---|
| End Connection | Socket Weld |
Standards & Certifications
See Specification Sheet
